Product Description
Product Description

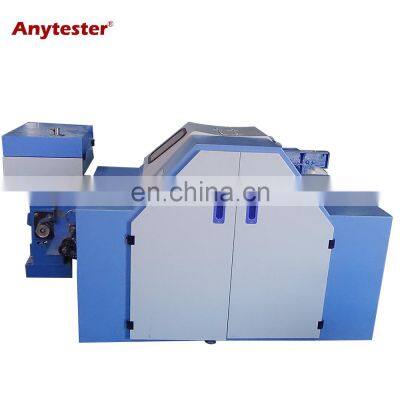

Product DescriptionAT202 Laboratory Carding Machine is part of the mini spinning system. It's mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.Detailed Images Model AT202 Feeding width 400mm Working width 360mm Cylinder diameter Φ450mm Doffer diameter Φ220mm Licker-in diameter Φ165mm Working roll diameter Φ110mm Wipe roll diameter Φ90mm Speed Adjustable (Frequency converter control) Max. fiber length about 100mm Villus bucket power 1.5KW Output capacity 5~10kg/h Maine machine power AC220V/380V, 50/60Hz, 2.2KW Dimension 1350mm*950mm*900mm (main machine) 900mm*900mm*1200mm (villus bucket) Weight Approx. 800kg★ It is driven by a 2.2kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed.★ With full-closed protective cover.★ Two rollers feeding.★ Can be used for wool fiber or chemical fibers.★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web★ It can produce web or sliver according to customer's selection. ★ Imported frequency converter control, high efficiency.★ Mini type machine, save researching cost and easy to operate and maintain.Packing & Delivery Packaging Size(cm) 1350mm*950mm*900mm Weight Approx. 800kg Packaging Details 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Payment Payment Item T/T EXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance,paid the balance against copy of B/LCIF 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF L/C L/C amount above 50,000 usd, we can accept L/C at sight West Union Amount lower than 50,000usd Delivery Time 7~10 days after receiving payment for one containerRelated Products AT205 Laboratory Roving Machine AT204Laboratory Drawing Frame AT206 Laboratory Ring Spinning Machine HY1007 Laboratory Two For One TwisterOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us ERIC QIN Website Mobile Phone +86 188 5510 5986 Whatsapp +86 188 5510 5986 Skype eric-qlk Wechat +86 188 5510 5986
>>
