China Factory Mining Machinery Hydraulic Rock Cone Crushing Symons Cone Crusher

Product Description

Product Description

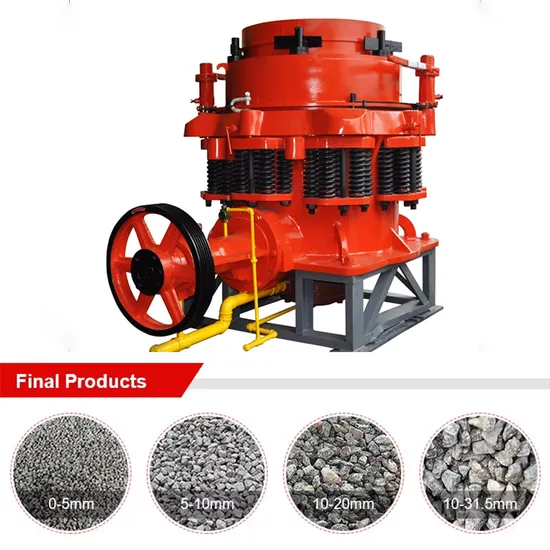

Symons cone crusher machine can be used as secondary, tertiary or quaternary crushing and can crush materials of above medium hardness, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc. It has features of large crushing capacity, high crushing efficiency, low operation cost, convenient adjustment, economical to use, etc. Reasonable materials of spare parts and structure design improves its service life. Moreover, the final products is of uniform and cubic granularity, thus reducing the production load for re-crushing.
Detailed Photos Feeding size: 30-400mm Capacity: 10-2000tph
Applications:barite, marble, calcite, kaoline, coal, gypsum, concrete, building wastes etc.
Its wear parts mainly are concave and mantle. We provide matched spare parts and OEM wear parts.
Symons cone cruhser features:
1. High-performance. Combining optimal designing of chamber type with applying reasonable speed and stroke;
2. Optimized design of "spring type" protector for releasing iron;
3. Hydraulic cleaning system decrease the downtime;
4. High reliability. Adopting main shaft with big diameter,heavy main frame and separate automatic oil lubrication system .
Product Parameters

model	dynamic cone diameter	cavity type	size of the ore		discharge size mm	capacity t/h	power kw	weight t	oversize mm
			closed side mm	open side mm
CS75B	900	F	83	102	9-22	45-91	75	15	2821*1880*2164
		C	159	175	13-38	59-163	75	15	2821*1880*2164
CS110B	1200	F	127	131	9-31	63-188	110	20	2821*1974*2651
		M	156	156	13-38	100-200	110	20	2821*1974*2651
		C	178	191	19-51	141-308	110	20	2821*1974*2651
CS160B	1295	F	109	137	13-31	109-181	185	27	2800*2342*2668
		M	188	210	16-38	132-253	185	27	2800*2342*2668
		C	216	241	19-51	172-349	185	27	2800*2342*2668
CS240B	1850	F	188	209	16-38	181-327	240	55	3911*2870*3771
		M	213	241	22-51	258-417	240	55	3911*2870*3771
		C	241	268	25-64	299-635	240	55	3911*2870*3771
CS400B	2134	F	253	278	19-38	381-726	400	110	4613*3251*4732
		N	303	334	25-51	608-998	400	110	4613*3251*4732
		C	334	369	31-64	789-1270	400	110	4613*3251*4732

Packaging & Shipping Packaging: standard container, nude packs or in bulk.The electrical motor or spare parts will be packed by wooden case or steel frame. CFTC offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Generally, the equipment will be loaded to the containers in the factory. Our workers will make sure all equipment are steady and fixed before close the door of the container.
Working Site
Company Profile Henan Kaichuang Machinery Equipment Co., Ltd. is a modern enterprise focusing on the research, development, production and sales of stone crushers. The factory is located in Gongyi, Zhengzhou, Henan, with advanced production equipment and strong technical force.
Our factory has an experienced R&D team who constantly pursues innovation and combines market demand and advanced technology to carefully design a variety of stone crushers with excellent performance, high efficiency and energy saving. These products cover hammer crushers, impact crushers, cone crushers, hammer crushers and other types, which can meet the diverse needs of different customers in the fields of ore crushing, construction waste processing, road construction and other fields.
The factory has a professional after-sales team to provide customers with comprehensive service support such as equipment installation and commissioning, technical training, and maintenance. No matter where the customer is, as long as they encounter a problem, we can respond quickly to ensure that the customer's production is not affected.
Over the years, our stone crushers have been selling well in domestic and foreign markets and have won widespread praise and trust from customers. In the future, Henan Kaichuang Machinery Equipment Co., Ltd. will continue to adhere to the business philosophy of "quality first, customer first", continue to innovate and progress, provide customers with better products and services, and contribute to the development of the stone crushing industry.

FAQ Q1. Installation
A: We'll send the technicians to help with the installment in site, if needed, and you need take all the charges.
Q2. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
A1). what is your raw material?
2).what is the max size of the raw material (mm/inch)?
3).what is the required output size?
Q3. How long is the warranty? Does your company supply related spare parts?
A: The crusher equipment is warranted for one year. And we provide spare parts at reasonable price.
Q4: How long is the delivery time?
A: Generally it takes one week if the goods are in stock. Otherwise it needs 15-20 days, and it also depends on the ordered quantity.

---
