1bzdz Series 4.4-6.2m Width 40-56 Discs Trailed Hydraulic Wing-Folded Opposed Heavy Duty Disc Harrow for 140-280HP Tractor

Product Description

1BZDZ series 4.4-6.2m width 40-56 discs trailed Hydraulic Wing-folded Opposed Heavy duty Disc harrow for 140-280HP Tractor
1BZDZ series Disc harrow main Features and Specification:
1BZDZ Series Disc Harrow Main Features and Usage:
1BZDZ Disc Harrow, Full name is 1BZDZ series Trailed Hydraulic Wing-Folded Contraposition Heavy-duty Disc Harrow,
Have four main features:Crop residue management,Soil tillage,Wide space efficient operation and Narrow metastasis.
They are constructed around a central robust mono frame, can be installed by 32-36 discs, divided into front and rear two gangs notched disc, Suitable for destroying, sticky heavy soils, low wetland, straw, corn crop land or land area of high crop plow before stubble ploughing. After the broken soil or no-till blade be replacing plough.
1BZDZ series disc harrow have 230mm, 240mm and 270mm three various disc space for choices. Different disc spacing different effect:230mm and 240mm suitable for multi-purpose, 270mm suitable for deep coarse plow stubble ploughing, or without the plough surface farming. The working width from 2.50 meter to 7.0 meter, matched power from 80-hp to 260 horsepower.
1BZDZ series disc harrow each component meticulously design, in stall the connection is solid and reliable, In the work process,it can be seen the every part of working conditions early. The dislocation of the design for front and rear disc gang, and the disc gang on both sides of X to fill out the ditch disc, ensure the maximum working width, structured highly, convenient adjustment,keep balance, low gravity reasonable distribution, work and driving stability, facilitate turning around, working surface is flat and level, broken soil and stubble ploughing are good property, turning radius small paddock, high efficiency.

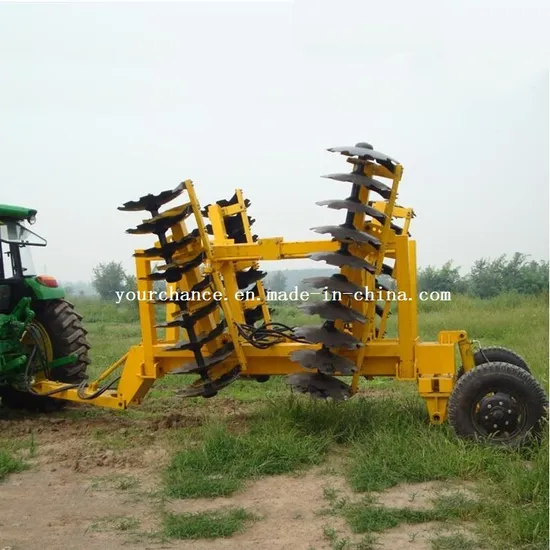

1BZDZ series disc harrow have broad rubber tire, both sides harrow group can be convenient and quick folded and lock through hydraulic system, so when transporting,its transport width less 2.5meter and safety, accord with road traffic regulations, so as to realize the wide space operation, narrow space transportation metastasis.
1BZDZ series Disc Harrow's front gangs are assembled with scalloped disc, and rear gangs with plain disc. The harrows are adopted a whole frame made of quadrangular steel tubes by welding, So their structures are simple and reasonable, strong and durable. Their processes are perfect. The bearing is ball bearing with sphere-outside and square-inside, its rated load is large, trailing resistance is small, sealing is good. They're convenient to operate and maintain. Efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
Main Technical Parameters and Specification:

Model	Unit	1BZDZ-4.4	1BZDZ-4.8	1BZDZ-5.3	1BZDZ-6.2
Overall dimension	mm	5800×4500×1500	5800×4950×1500	5800×5400×1500	5800×6380×1500
Net Weight	kg	3100~3150	3250~3300	3400~3450	4150-4200
Working width	m	4.4	4.8	5.3	6.2
Working depth	mm	200-240
Disc Blade spacing	mm	230
No of disc	pcs	40	44	48	56
Diameter of disc	mm	660(650)
Transport clearance	mm	>260
Working speed	km/h	5-10
Productivity	ha/h	2.7	3.2	3.8	4.65
Matched Tractor power	kw	105-110	115-120	125-130	140-160
Linkage		Trailed

1BZDZ series Disc harrow by Iron crate packing:
High quality Disc harrow have ISO,CE, PVOC COC, CO etc certificates:
Best price will be quoted for you as soon as receive your Requirement !

---
