| US$4.00 | 5 Pieces (MOQ) |

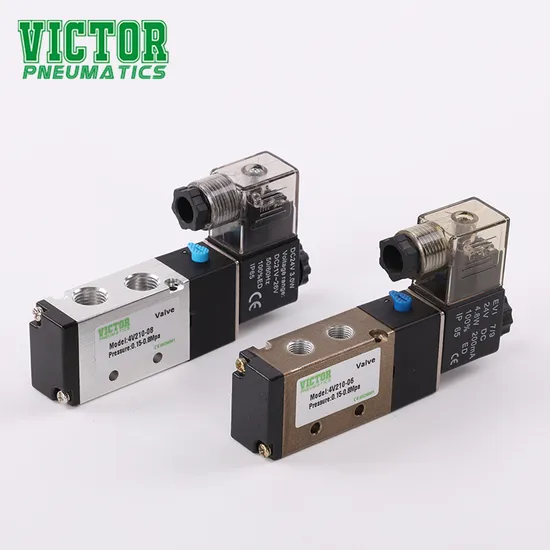

| Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V220-08 | 4V230C-08 | 4V230E-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | |
| Position and Way NO. | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | ||||||
| Effective Sectional Area | 14mm2(CV=0.78) | 12mm2(CV=0.67) | 16mm2(CV=0.89) | 12mm2(CV=0.67) | ||||||
| Model | 3V210-06 | 3V220-06 | 3A210-06 | 3A220-06 | 3V210-08 | 3V220-08 | 3A210-08 | 3A220-08 | ||
| Position and Way NO. | Two-position Five-way | Two-position Five-way | ||||||||
| Effective Sectional Area | 14mm2(CV=0.78) | 16mm2(CV=0.89) | ||||||||
| Joint Pipe Bore | Air Inlet=Air Outlet=Exhaust=G1/8" | Air Inlet=Air Outlet=Exhaust=G1/8" | ||||||||
| Working Medium | 40 Micron Filtered Air | |||||||||
| Motion Pattern | Inner Guide Type | |||||||||
| Working-Pressure | 0.15~0.8MPa | |||||||||
| Max.Pressure Resistance | 1.2MPa | |||||||||
| Operating Temperature | 5~50 | |||||||||
| Voltage Range | ±10% | |||||||||
| Power Consumption | AC:2.5VA DC:2.5W | |||||||||
| Insulation & Protection Class | F CIass.IP65 | |||||||||
| Wiring Form | Lead Wire or Connector type | |||||||||
| Highest Action Frequency | 5 Cycle / Second | |||||||||
| Shortest Excitation time | 0.05 Second | |||||||||
