China Wenovus Wn-CH110 Large Field Specialist Farm Machinery Speedy Grain Collection System Robust Soil Till High-Speed Crop Gather Ergonomic Operator Cab

Product Description

Company Products
Our Advantages
1.Highest levels of vertical integration in the industry
ΦSuperior quality control
ΦStable, responsive supply chain
2.China and Thailand based manufacturing operations and supply chain
ΦAvoids anti-dumping tariffs (country of origin certified as Thailand for select categories)
ΦExcellent Thailand / U.S. government relationship
ΦStable Thailand supply chain and strong industrial base
3.Significant experience in contract manufacturing for well known brands
ΦStrength in maintaining costs low and ability to offer high quality competitively priced finished products to
ΦSupport channel partner brands
4.Wide range of gas and battery outdoor power equipment product categories
ΦMore than 10 categories in production, and adding more
ΦConfigurable products to customize solutions for retail and OEM customers
Product Description
Superior power and long endurance 110HP, 4 cylinder , water cooling turbor charged superior power engine continuesly support the harvester working with low disel consumption, low vibration and noise. Also, 220L fuel tank makes sure full day working without any additional refilling. Super suitable for muddy land, never stuck 55 cc HST coupled with reinforced gearbox and wider and longer crawler(500/90/56) insure the flexible steering and high efficiency harvesting in super muddy land without any stucking. High-efficiency clearing and threshing Longer (2200mm) and bigger diamete(620mm) thresher drum equipted with special heat treatment threshing rake as well as the longer concave sieve make the threshing process and lost rate perfectly. huge grain tank, less unloading frequency 1.5 m³ grain tank reduces the unloading frequency significantly which improves the efficiency of harvesting.

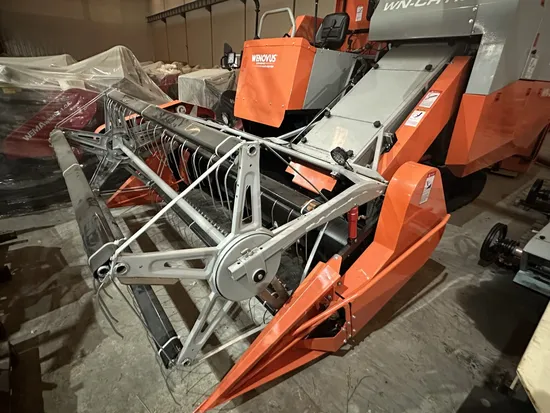

Detailed Photos

Product Parameters

MODEL NAME	WN-CH110
Type	Self-propelled, Full-feed Tracked
Dimension(mm)	5820*2550*2870
Net Weight(kg)	3680
Engine Model	4C6-110M22
Engine Type	Horizontal, 4 Cylinder, Water Cooling
Rated Power(kw)	80
Engine Rated Speed(R/Min)	2600
Fuel Tank Volume(L)	220
Cabinet	None(optional cab)
Gearbox	Gearbox+HST
Rubber Crawler	90*56*500
Ground Clearance(mm)	350
Cutting Width(mm)	2200
Feeding Capacity(kg/s)	6
Cutting Table Lifting System	Hydraulic
Threshing Drum Type	Spike Tooth Axial Flow Type
Threshing Drum Size(mm)	φ620*2200
Fan Diameter(mm)	φ400
Unloading Method	Universal Unloader auger
Grain Tank Size(m3)	1.5
lost Rate	2.5%
Break Rate	0.7%
Impurity Rate	5%
