US$8,000.00-18,850.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Operating Mode
Hydraulic Lever
Max. Bucket Digging Force
15.7kn
Max. Arm Digging Force
14.1kn
Overall Size
3950 X 1400X 2300 mm
Cylinder
Three Cylinder, Water Cooling
Transport Package
Polybox
Production Capacity
100pieces Per Week
Product Description

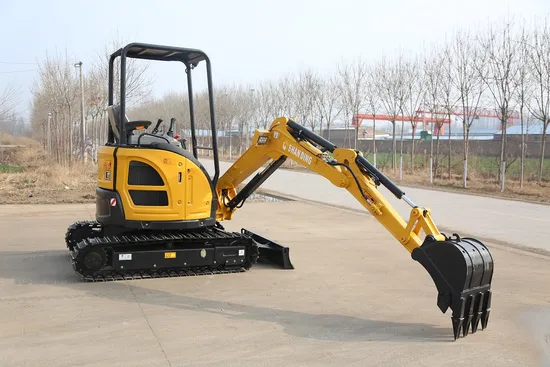

SD25U HYDRAULIC MULTIFUNCTION MINI EXCAVATORS
One excavator ,Finish all the garden workS!
It is made by the standard of excavators! Can used in garden,home,green house and so on.
It can quickly change many attachments,root rake,breaking hammer, earth auger etc. It is very useful
for garden work.The luxury cabin is very comfortable! Let you enjoy the better life! Yanmar or Perkins Engines optional, meet EPA &
Europe V standard!
| Brand | SHANDING |
| Model | SD25U |
| Operating weight | Hydraulic lever |
| Bucket capacity | 2500kg |
| Bucket width | 600mm(Any size can be customized) |
| Engine | Yanmar 3TNV70 11.2KW
Yanmar 3TNV80F 15.2KW(EURO 5) |
| Pump | Taifeng Plunger pump |
| Valve | HUSCO |
| Walking motor | LTM-03c |
| Rotary motor | EATON SW2K-195 |
| Walking speed | 4km/h |
| Track type | Rubber Track |
| Retractable undercarriage | Optional |
| Boom swing | Yes |
| Closed cab | No |
| Climb ability | 35ยบ |
| Digging force | 16kn |
| Physical Size |
| Total (length*width*height) | 3950 x 1400x 2300 mm |
| Track length*width | 1870mm*250mm |
| Platform ground distance | 480 mm |
| Platform width | 1330 mm |
| Boom length | 950mm |
| Arm length | 450mm |
| Working Range |
| Max.digging depth | 2550 mm |
| Max.digging height | 4300 mm |
| Max.digging radius | 4150 mm |
| Max. dumping height | 2530mm |
