Donjoy Hygienic Stainless Steel Twin Screw Pump for High Viscosity Liquid

Product Description

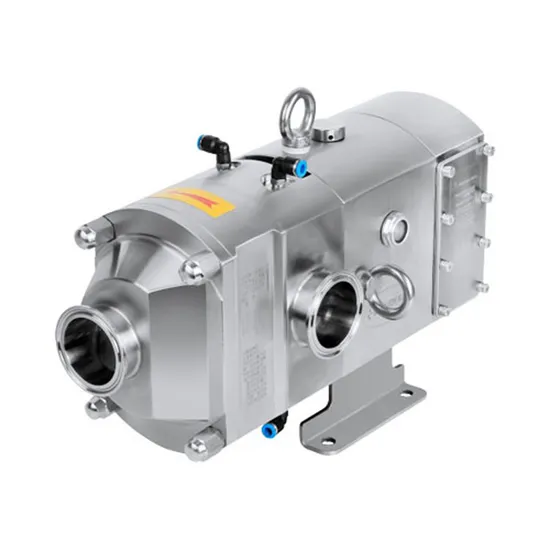

Donjoy Hygienic Stainless Steel Twin Screw Pump for High Viscosity Liquid
Twin screw pumps, with strong CIP function, could be transported solid particles, gas-liquid mixtures, media with high or low viscosity and so on. It not only could be used to extract and convey media but also could be used in CIP and SIP systems. It could reduce pipeline, valve and CIP pump, which improves efficiency and reduce cost. Such a pump also is equipped with extra advantages such as no pulse, no particle damage, high pressure, wide speed range, large flow range and so on.
Advantage
Flexible solution for two-direction reversible, high pressure, high viscosity, large particle, pulse-free, liquid delivery
Specification

Item:	Twin Screw pump
Contact Material:	SS316L
Seal Material:	SIC/SIC/ FKM
Max. Flow:	110 m3/h
Speed range:	10-3500 RPM
Mechanical seal:	SIC/SIC/FKM(Standard), Single or double mechanical seal
Working temperature:	-20~150 degree centigrade
Voltage:	110V, 220V, 380V
Motor:	ABB/SIEMENS/Chinese brand motor
Motor Frequency:	50HZ, 60HZ
Available Connection:	Clamped, Threaded, Flanged
Standard:	DIN, SMS, 3A, RJT, ISO, IDF
Operated:	Electric motor
Certificate:	3-A-02-11 (1759), FDA.177.2600, CE-MD/06-42 NO. 705201402401-00
Application Range:	Mash, Dairy, food, beverage, pharmacy, cosmetic etc
Packaging Details:	Plywood case

Donjoy experienced 20 years of development whose product lines are constantly enriched and developed.

---
