Cold Press Soy Beans Mustard Oil Extractor Machine 6yl Series Durable Usage

Product Description

Cold/Hot Pressed Vegetable Oil Making Machine w/ Diesel Engine Set

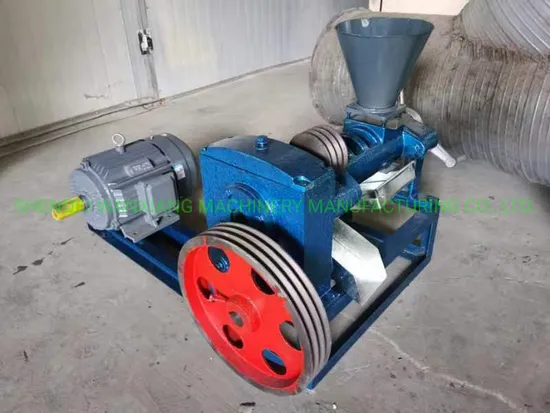

About Screw Oil Press:
Screw oil press works by physical squeezing,with obvious advantages of low investment,high oil yield,easy to operate,easy to maintain and wide application ,e.g peanut,rapeseeds,soybeans,cotton seeds,tung seeds,palm kernels etc.
Oil Seeds Pressing Processing Plan:
Screw Oil Press Machine Structure:
Standard Technical Parameters of the Screw Oil Press Series One:

MODEL	CAPACITY (T/D)	POWER (KW)	DIMENSIONS (MM)	OIL RESIDUE (%)	SHAFT SPEED (RPM)	WEIGHT (KG)
6YL-68	1-1.5	5.5	1000*550*950	≤7	120-130	140
6YL-80	2-3	7.5	1400*580*1100	≤7	40-50	300
6YL-95	3-5	11	1700*600*1350	≤7	30-40	460
6YL95-2	4-5	11	1750*600*1450	≤7	30-40	480
6YL-95A	4-5	11	1750*600*1450	≤7	30-40	520
ZX-105	5-7	15	1850*700*1450	≤7	45-55	580
ZX-130	10-12	18.5	2150*700*1500	≤7	35-39	820

Standard Technical Parameters of the Screw Oil Press Series Two:

MODEL	CAPACITY (T/D)	POWER (KW)	DIMENSIONS (MM)	OIL RESIDUE (%)	SHAFT SPEED (RPM)	WEIGHT (KG)
6YL-100	4-6	11	1700*600*1300	≤7	30-40	460
6YL-105	5-7	11	1850*650*1400	≤7	45-55	560
6YL-120	6-8	15	1850*650*1400	≤7	45-55	560
6YL-130	8-10	18.5	2150*700*1500	≤7	35-39	730
6YL130-9A	10-12	18.5	2150*700*1500	≤7	35-39	780
6YL-140	12-14	22	2200*700*1500	≤7	35-39	850
6YL-160	18-20	30	2250*750*1500	≤7	35-39	980

Product Advantages:
Factory Advantages:
Your Wise Counsel with Oil Pressing Operations:
1. Upon starting the machine,control the feeding amount each time in a gradually increasing manner,in the meanwhile check drycake & oil extruding status and adjust the oil cake thickness accordingly. After the adjustment,ensure a smooth and evenly feeding each time.
2. Mangage your drycake thickness in the below fashion:
First pressing,cottonseeds 1-1.5mm,soybeans 1-2mm,peanut 2-2.5mm,rapeseeds 1-2mm; Second pressing,soybeans 0.5-1mm,peanut 1-1.5mm,rapeseeds 0.5-1mm; Third pressing,peanut 1-1.5mm.
3. Oil extruding rate will mount to standard after machine reaches 80C.
4. While it runs on,wood sticks can be emplyed to blend in the hopper to avoid conjestion.
5. When you wanna stop the machine,continue feeding in the waste drycakes to extrude all left-inside oil cakes,before you plug out the screw shaft and cleanse the chamber.
6. Handle with care the screw shaft when taking out to avoid damage, place it vertically so weight doesnt disform the screw tread.
Contact us today and get catalog and quotation for your desired Spiral Oil Press!

---
