High-Speed CNC H Beam Steel Plate Driller for Precision Engineering

Product Description

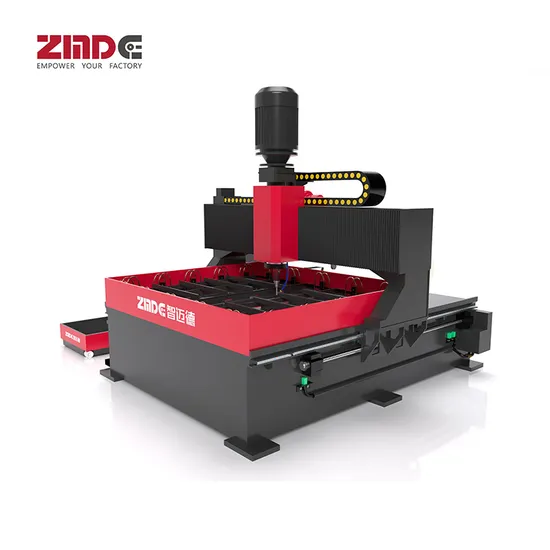

ZMDE High Speed Automated CNC H Beam Steel Plate Driller: Unleashing Superior Efficiency and Precision in Industrial Drilling.
>Cost-effective Marvel of Engineering <
1. Built from solid, high-quality materials, our equipment boasts an exceptionally low failure rate, significantly reducing maintenance costs. Featuring top-tier components such as ball screws, linear guides, hydraulic parts, electrical elements, servo motors, and frequency converters, all sourced from renowned industry brands.
2. Equipped with a CRT display, our machine provides automatic chip removal, drastically cutting down manual cleaning time and costs.
3. Offering unmatched precision, the ZMDE Driller ensures a high qualification rate of workpieces, thus minimizing the cost of consumables.
>Streamlined Operation, Outstanding Productivity <
1. Featuring a user-friendly human-machine interface, it allows for clear visualization and the effortless generation of automatic machining programs.
2. The CNC and PLC-controlled system guarantees pinpoint accuracy and reliable performance.
3. Operators can easily manage workpieces with hydraulic clamps and convenient foot switch controls, enhancing ease and efficiency.
4. Boasting 12 rapid-action hydraulic clamps around the table, it can handle four groups of workpieces simultaneously.
5. Small workpieces can be securely clamped at the table's corners, significantly reducing production preparation time and boosting efficiency.
6. Secure small workpieces at the table's corners for drastically reduced preparation periods and heightened production efficiency.
> Assured Quality, Versatile Applications <
1. Key components such as the gantry, column, and table are constructed from robust materials, with the main machine weighing an impressive 6300kg.
2. Versatile across various industries, it serves as the cornerstone for plate processing operations.
3. Capable of handling a wide range of drilling diameters from 12mm to 50mm.
> Adaptable to Diverse Production Environments <
1. Ideal for continuous production runs of single flat-type workpieces.
2. Perfect for small batch production of diverse workpieces, including rectangular, round flanges, and polygonal plates, it can process two or four different plate specifications simultaneously.
3. Efficiently produces multiple layers of thinner sheets in stacks, capable of drilling holes up to 100mm in depth.
4. The software automatically determines the start and end points for processing, facilitating both through holes and complex drilling tasks such as blind holes, step holes, and hole end chamfers.
> Revolutionizing Production with Automation <
1. Integrated line board system ensures a high degree of automation and precise positioning as per the drilling program.
2. Automatically adjusts the optimal feed rate based on varying hole diameters, ensuring precision.
3. Enables automatic and continuous processing of large hole diameters with one-time molding.
4. Features an efficient automatic chip removal function, maintaining a clean and productive workspace.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Founded in 2013, ZMDE Co., Ltd. is a trailblazing high-tech enterprise specializing in assembly building intelligent equipment. Our company excels in R&D, manufacturing, sales, and service, earning the prestigious title of 'national specialization, speciality and new small giants' enterprise. Our core industry revolves around the creation of groundbreaking steel structure assembly building intelligent industrial mother machines and advanced Industry IoT solutions.We boast an unparalleled intelligent control system tailored for dual plate configurations.
Our headquarters are strategically located in the Lingang New Area, Pudong New District, Shanghai. Spanning a vast 32,000 square meters, the site houses our esteemed Research Institute of Artificial Intelligence for Assembled Buildings. This facility primarily handles the company's management and spearheads the research and development of cutting-edge core technologies, including Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, situated in the Weicheng District of Weifang City, is dedicated to the research, development, and production of intelligent industrial mother machines specifically designed for the steel beams of assembled buildings.This facility also focuses on creating intelligent industrial mother machines for the walls of assembled buildings, ensuring comprehensive solutions for modern construction needs.

FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)

---
