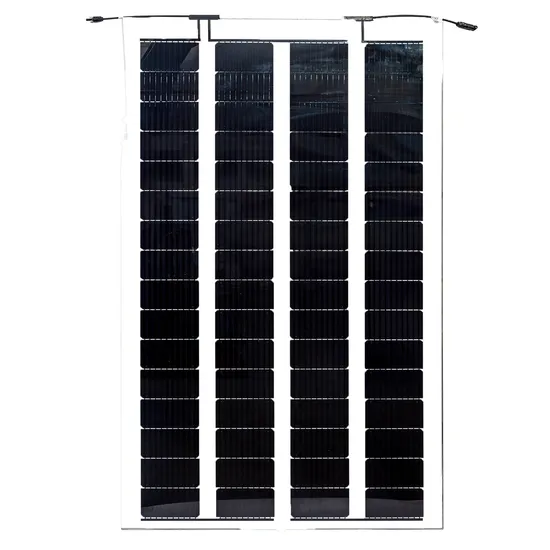

230W 240W Colored BIPV Transparent Solar Glass

Product Description

Hot Sale BIPV Mono Module 240 Watt Product Description PV Module
Electrical Charateristics

Product Model	230	235	240	245
Maximum Power W	230	235	240	245
Maximum Power Voltage (Vmp)	34.39	34.68	34.98	35.21
Short Circuit Current(Isc)	13.63	13.75	13.86	14.00
Open Circuit Voltage (Voc)	21.7	21.97	22.20	22.43
Module Efficiency	11.8%	12.0%	12.3%	12.5%
Power Tolerance	±5W

Temperature Charactristics

Temperature Coefficinents of Voc( % °C)	-0.35
Temperature Coefficinents of Isc ( % °C)	+0.046
Temperature Coefficinents of Pm ( % °C)	-0.47
Temperature Coefficinents of Vm ( % °C)	-0.38
Temperature Coefficinents of Im ( % °C)	+0.04

Mechanical Specifications

Cell Type mm	Mono 64 (4*16)
No. of Cells pcs	120 (6*10*2)
Size of Modules mm	1722*1134*30
Front Glass Thickness	2.0 mm
Weight Per Piece KG	24.5±5%
Module Composition	EVA/POE/PVB
Maximum mechanica test load Pa	Front 5400 Pa Back 2400 Pa
J-box Prating	IP68
Operating Temperature °C	-40 to +85
Nominal module operating temperature NMOT	45 ± 3 °C

Installation

Company Profile Lester (Xiamen) Co. Ltd. is a dynamic new energy enterprise committed to promoting the development of global green energy industry and providing high-quality green energy solutions for customers. We have an experienced and skilled professional team that can provide customers with comprehensive design, R&D, production, construction, operation, and technical support services. We adopt international leading technology solutions, constantly innovate and develop, providing enterprises with sustainable clean energy and promoting the development of environmental protection cause. Our photovoltaic power generation system is efficient, safe, and reliable, providing customers with clean and sustainable energy, making a positive contribution to the cause of environmental protection. Our building-integrated photovoltaic technology incorporates photovoltaic panels into buildings, which is aesthetically pleasing, practical, and environmentally friendly, meeting the requirements of modern buildings for green energy. Our building-integrated photovoltaic glass uses high-quality materials and efficient photovoltaic equipment, achieving optimal light absorption and power generation efficiency, providing sustainable green energy for enterprises. Our high-tech intelligent energy-saving curtain wall doors and windows can intelligently adjust indoor air temperature and humidity, improving building energy efficiency. We always adhere to the service philosophy of customer first and quality first, and strive to provide customers with high-quality and efficient green energy solutions.

---
