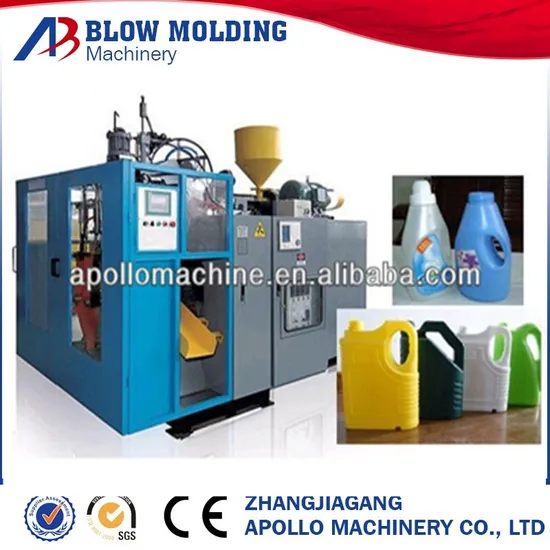

Famous Servo Motor 2L Plastic Laundry Detergent Bottle Making Machine

Product Description

ABLB55 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 3.5L. This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 3.5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

Max. Product volume	3.5L
Out put capacity	400~600pcs/h
Screw diameter	45mm
Screw L/D ratio	24:1 L/D
Screw drive power	10KW
Screw heating capacity	2.6KW
No.of heating zone	3 zones
Output of HDPE	35KG/H
Oil pump drive power	4.8KW
Clamping force	32KN
Max.size of mold	80-350mm
Mold stroke	250X 320mm
Max.die diameter	80mm
Blowing pressure	0.6mpa
Air Volume	0.4M³/MIN
Cooling water pressure	0.3mpa
Water consumption	30L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton

---
