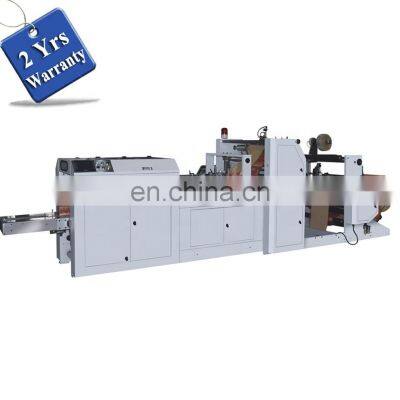

HSD400B Automatic Flat V Bottom Pastry Food Brown Kraft gusset Paper Bag Making Machine with Transparent Plastic Film Window
Videos
Video demonstration only for reference
Video 01: https://youtu.be/Fi23rKyXBsg
Video 02: https://youtu.be/Yf1w9dzk95A
Product Description
Description:
This paper bag making machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.
Features:
1. Adopt touch screen and PC control system, the work condition can be shown real time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material lifting adopt pneumatic lift structure.
4. Global initiative, leading technology, the “foolproof” style automatic constant tension control system using the United Stated Bellofram precision controller. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6. Accurate color tracking system, color errors automatically shut down.
7. Automatic lubricating oil supply system.
Parameters:
Type
| HSD-400B
| HSD-700B
|
Cutting Length(C)
| 100-410 mm
| 170-710 mm
|
Bag Length(H)
| 90-400 mm
| 160-700 mm
|
Bag Width(L)
| 70-220 mm
| 80-350 mm
|
Gusset Depth(S)
| 0-60 mm
| 0-60 mm
|
Standard Flap(P)
| 15-18 mm
| 15-18 mm
|
Max.Speed
| 700 pcs/min
| 600 pcs/min
|
Paper Thickness
| 30-80 gsm
| 30-100 gsm
|
Paper Roll Width
| 180-680 mm
| 220-930 mm
|
Film thickness
| 0.03-0.05mm
| 0.03-0.05mm
|
Max film diameter
| 500mm
| 500mm
|
Film width
| 50-220mm
| 50-220mm
|
Max.Roll Diameter
| 1100 mm
| 1200 mm
|
Reel Inner Diameter
| 76 mm
| 76 mm
|
Total Power
| 8 kw
| 13 kw
|
Weight of Machine
| 3500 kg
| 5000kg
|
Overall Dimension
| 5850×1400×1650 mm
| 6900×1800×1700 mm
|
Detailed Images
Man-machine Interface Touch Screen
Automatic Counting System
Color Mark Tracking System
Paper Tube Forming System
Servo Motor Driven Point Tooth Pre-Cut System
Hot-melt Glue Spraying System
Pneumatic Paper Reel Loader
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
Certifications
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Packaging & Shipping
Wooden Case Loading and Transport
