US$9,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Making Method of Parison
Stretch Blow
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
Control System
Computerized
Bottle Volume
100ml to 2500ml
Machine Capacity
600 Bottles Per Hour
Machine Installation Power
30kw
Suitable for
Water Bottle, Beverage Bottle, Oil Bottle...Ect
Voltage
Be Designed by Customer Request
Certificate
SGS, ISO, Ce,..
Transport Package
Wooden Export Package
Specification
ISO, SGS, CE
Origin
Zhangjiagang City, China
Production Capacity
50/Month
Product Description

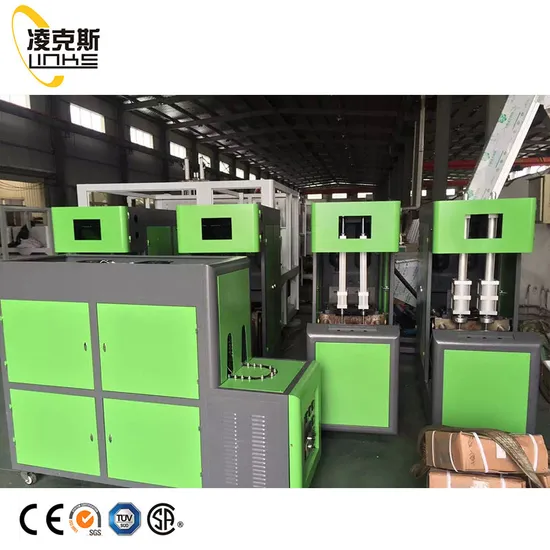

Semi-auto PET Bottle Blow Molding Machine
With High efficiency, easy maintenance
Semiautomatic bottle blow molding machine is suitable for producing PET plastic container and bottles.
It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Name | Item | Unit | Details |
Blowing machine | Dimension | mm | 1600*600*1610mm |
Weight | kg | 500 |
Bottle volume (max) | ml | 2000 |
Bottle volume (min) | ml | 50 |
Bottle Neck Diameter (max) | mm | 40 |
Bottle Neck Diameter (min) | mm | 18 |
Body Diameter (max) | mm | 125 |
Body Height( max) | mm | 420 |
Number of Cavities | mold | 2 |
Production output | pcs/h | 600BPH |
Clamping force | T | 5.7(56KN) |
Mold thickness | mm | 200(max) |
Mold width | mm | 360x390 |
Space between Tie-bars | mm | 120-220 |
Diameter of Tie-bars | mm | 63 |
Scope of Tie-bars | mm | 405 |
Mold stroke | mm | 160 |
Stretching stroke (max) | mm | 420 |
Working pressure | Mpa | 0.8-1.0Mpa |
Blowing pressure | Mpa | 2.0-3.0Mpa |
Power | V/KW | 1KW |
Weight | Kg | 500 |
Pre-heater | Dimension | mm | 1870*630*1450mm |
Weight | kg | 260 |
Power | V/KW | 14KW |
FAQ 1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.
3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.
>>
