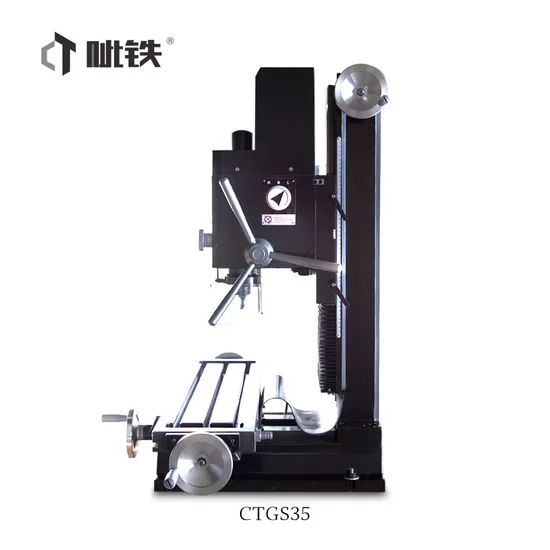

Ctgs35 Vertical Drilling and Milling Machine

US$1,730.00
1-4 Pieces
US$1,661.00
5-9 Pieces
US$1,592.00
10+ Pieces

Basic Info.

Model NO.
CTGS35
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
870*630*1000mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Max.Drilling capacity 35mm
Max.milling capacity 70mm
Max.vertical milling capacity 30mm
Table size 840*210mm
T-slots size 14mm
X spindle travel 570mm
Y spindle travel 200mm
Z spindle travel 350mm
Spindle taper MT3/M12
Spindle travel 70mm
Distance from spindle to column guide rail 180mm
Distance from spindle end to table surface 470mm
Spindle box left&right rotation angle ±90°
Spindle speeds 50~3000 rpm
Motor Power 1100W
Net weight/Gross weight 220/260kg
Package Size 870*630*1000mm
