Fmworld 4lz-3.0d Combine Harvester 102HP Made in China

Product Description

Product Overview
FMWORLD 4LZ-3.0D Combine Harvester
The combine harvester was suitable for variety of crops,for example rice,wheat and soybean.And been export to many countries,receiving unanimous praise.Double threshing structure,ensure the grain more clean.
FEATURES AT A GLANCE
(1)102 hp turbocharged engine with high power and low fuel oil consumption (2)Hydraulic Gear Box ZKB85 &45 CC HST,ensuring working faster (3)Rubber Track 550*90*51 and ground clearance 320mm,higher passability
(4)Cutting Width 2.2m,4.0kg/s feeding speed (5)Double threshing design,making sure the grain more clean (6) Fuel tank capacity 130L,ensure the whole day working
Right elevation
Left elevation

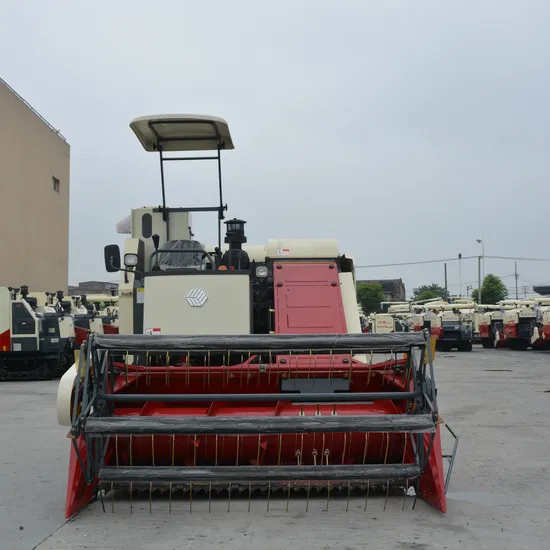

Front elevation
PRODUCT SPECIFICATIONS

ITEMS	DESCRIPTION
Model	4LZ-3.0D
Weight (KGS)	3000
Main Standard Configuration
Working Dimension L*W*H (mm)	4730*2850*2920
Ground Clearance(mm)	320
Work Efficiency (hm2/h)	0.32-0.56
Diesel Engine
Model	Changchai 4G33-TC
Type	Inline, Water-cooling, 4*4 strokes ,Direct Inject
Rated Power/Rotating Speed	102HP/2600rpm
Fuel Capacity (L)	130
Gear Box& HST
Gear Box	85 type hydraulic Gear Box
HST	45CC
Rubber Track
Size (mm)	550mm*51*90 mm
Track Center(mm)	1150
Header Platform &Conveyor Trough
Feeding Capacity(kg/s)	4
Cutting Bar Lift	Hydraulic Control
Cut Width(mm)	2200
Threshing Drum Type	Double cylinders
Threshing Drum Dia.*Length(mm)	Frontφ500*650,Mainφ600*1064
Cleaning System	Vibrating Sieves+Centrifugal Fan
Grain Tank
Grain Unloading Type	Vertical hydraulic dischargeing pipe
Others
Cabin/Canopy	Canopy
Crops	Rice ,Wheat ,Rapeseed,Soybean

---
