US$50,000.00-60,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
ISO9001: 2000
Operating Weight
7425 Kgs
Overall Dimension
6150*2200*2618mm
Max. Digging Height
7167mm
Max. Dumping Height
5100mm
Max. Digging Depth
4140mm
Transport Package
Nude,Suitable for Shiping
Specification
ISO9001: 2000
Production Capacity
10000PCS/Month
Product Description

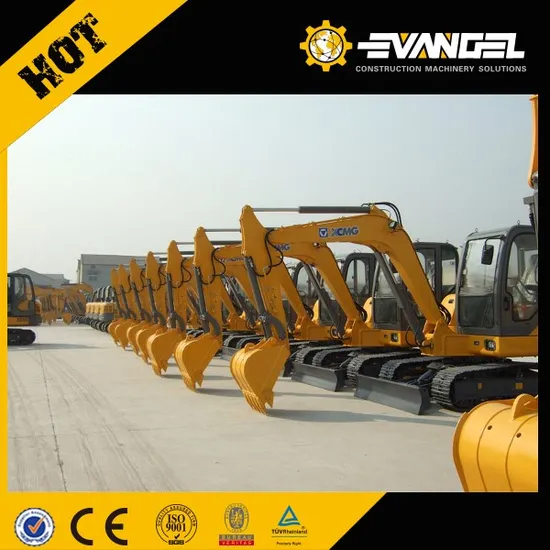

Excavator XE80
Imported engine of environment friendly and efficient low-consumptions
Product Description
1. Imported engine of environment friendly and efficient low-consumptions
2. Complete set of imported hydraulic components, excellent control, smooth operation
3. Imported radiator, adapt super load and continuous operation
4. High quality key parts, the chassis configuration of international quality
5. Powerful digging force, slew force and traction force
6. Completed closed PROS / FOPS cab, good vision and protection structure, import luxury seats, safe and comfortable
7. Fast full-open style hood, easy maintenance
8. Anti-collision structure of cast iron weight, the effective protection of turntable and hood
9. Optional hydraulic breaker piping, to facilitate the crushing operation
10. GPS satellite positioning and remote monitoring system.
| Model | XE80 |
| Bucket capacity | m3 | 0.34 |
| Standard bucket width | mm | 722 |
| Operation weight | kg | 7,425 |
Dimension
(in transportation) | Overall length | mm | 6,155 |
| | Overall width | mm | 2,220 |
| | Overall height | mm | 2,618 |
| | Min. clearance | mm | 392 |
| Engine | Model | B3.3 |
| | Total displacement | L | 3.3 |
| | Rated output power | KW/rpm | 60/2200 |
| Digging performance | Max. digging height | mm | 7,167 |
| | Max. dumping height | mm | 5,100 |
| | Max. digging depth | mm | 4,140 |
| | Max. vertical digging depth | mm | 3,218 |
| | Max. digging radius | mm | 6,375 |
| | Boom deflection angle | ° | |
| | Min. slew radius | mm | 1,815 |
| | Min. rear slew radius | mm | 1,770 |
| | Bucket digging force | kn | 53.6 |
| Track type | Steel |
| Track width | mm | 450 |
| Travel System | Track length | mm | 2,752 |
>>
