Shr Series High Speed Plastic Mixer/Plastic Mixer Machine

Product Description

Product Description

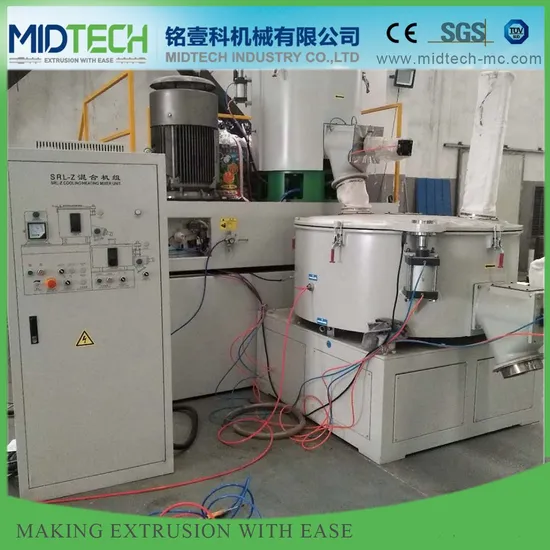

High-Speed Mixer is used in the material mixing, stirring, coloring and other process for plastic, rubber, daily chemical and other industries. It is the perferable equipment to produce plastic board, pipes, profiles and degradable plastics.
Features:
1. Mixed materials are made by negative pressure mixed principle
2. The electrical instruments are all well-known imported appliances with PLC programmable control
3. High degree of automation and speed mixing
4. The blade was made by stainless steel pressure and passed the static and dynamic balance test
5. Especially the coolant blade ued abroad advaned spiral mixing structure, the whole container has no dead angle, cooling speed and discharging clean.
6. Large volume
Certificate: ISO9001: 2008, CE, SGS

SRL-Z	Heat/Cool	Heat/Cool	Heat/Cool	Heat/Cool	Heat/Cool
Total volume (L)	100/200	200/500	300/600	500/1250	800/1600
Effective capacity (L)	65/130	150/320	225/380	330/750	600/1050
Stirring speed (RPM)	650/1300/200	475/950/130	475/950/100	430/860/70	370/740/50
Mixing time (Min.)	8-12	8-12	8-12	8-12	8-12
Motor power (KW)	14/22/7.5	30/42/11	40/55/11	55/75/15	83/110/22
Overall dimension(mm)	1950*1600*1800	4580*2240*2470	4800*2640*2480	5600*3000*3100	5170*3200*4480
Weight(kg)	2200	3400	3600	6500	9800

---
