Double Foot Valve

Product Details

Product Description

Product Description

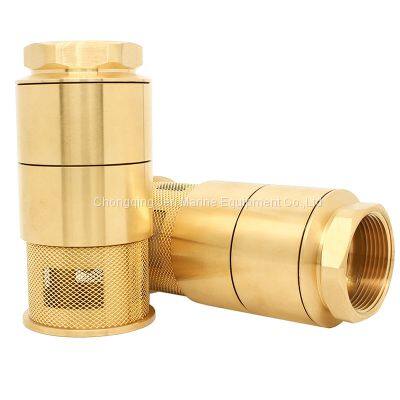

Double Foot Valve for Fuel Dispenser Pump
Brass Foot valve are installed on the bottom of suction tubes in the fuel storage tank to maintain prime in suction system fuel lines.
Double-poppet models provide redundant protection for holding the prime, and are ideal for installations where the valve is not easily accessible.
Our foot valve are recommeded for use on suction lines where the pressure does not exceed 34ft of head (approximately 15psi).
Brass check valve prevent the liquid backflow. It is suitable for oil machine. When install it,remove the plastic cover, clean it ,and tight the components and install the filter net to keep from the dirt. The body and the petal have been precision treatment.
It is used for water,gasoline,kerosene,diesel,oil, etc.
Construction Details：
1. Valve Type: Foot Valves
2. Body and poppet: Brass
3. Screen: 20 mesh brass
4. Check Assembly = Nylon
5. Check Seal = NITRIL
6. Thread = BSP Parallel
Brass Double Poppet Foot Valve
Single Poppet Foot Valve
Double Poppet Foot Valve
Main Products：
Advantages：
1. The foot valve is installed at the bottom of the oil suction pipeline of fuel dispenser tank to prevent the oil level from declining.
2. The double poppet desigin can provide additional protection, it is the ideal choice during installation.
3. The foot valve provides accurate hard sealing. Ane the foot valve is recommended to be used on the oil suction pipeline with the pressure no more than 15PSI.
4. All the foot valve are inspected with air pressure to guarantee the accuracy.
5. The filter can protect the foot valge against attack from impurities and scraps.
6. 100% factory inspection.
Packaging & delivery
Packaging Details
1. industrial packing: plastic tube+ cartons+ wooden pallets.
2. commercial packing: bag+ color box+ cartons+ wooden pallets;
3. As the guests' requirement.

---
