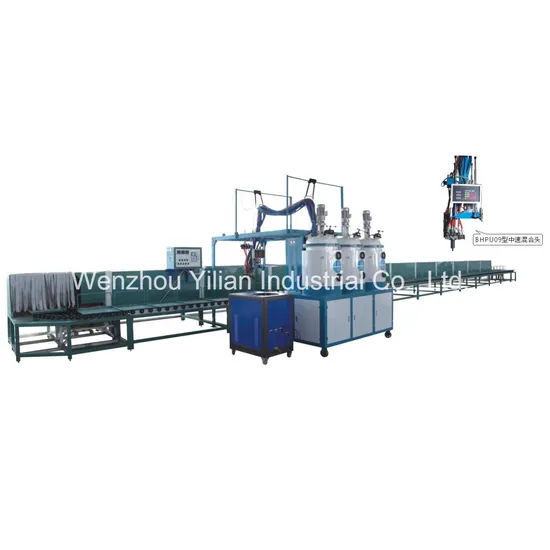

Convenyor Type PU Pouring Machine for Safety Shoes with 40/60/80 Station AC Control system

Product Description

WENZHOU YILIAN INDUSTRIAL CO., LTD
ADD: ROOM 614,6 BUILDING,WANGDA PLAZA,LONGWANG,WENZHOU, ZHEJIANG,CHINA

Details of Polyurethane Shoe Making Machine:
Features:
We are professional and leading manufacturers of PU Pouring Machines based in Wenzhou,China and has more than 15 experiences.This conveyor type pu pouring machine is specialized for producing double color, doulbe density and transparent soles, dip shoes & slipper $ sandal, outsoles, closed shoes.This equipment is composed by low preasure pouring system, hyduraulic oil heating system, AC drive control system, microcomputer measuring data control system,auto cleaning system, cooling system etc.Conveyor Infrared-tube heating system can save 30% energy comparing to oil or electric heating. Its main characteristics are as follows:
1.A1B,A2B can make double color, double density
2.lastest head structure,makes less head material dropping ,less waste and save material
3.use digital temperature control system in the heating conveyor,less power consumption,save energy and more stable temperature control.
4.heating chamber cover whole coveyor making energy conservation and heating very fast.
5.Ac drive control and plc control system making data ,ratio,pouring time setting easily ,comparing to old head gear motor setting type.
6.mateial auto loading system
7.material tank use hydrulic oil heating system making material inside tank heating more evenly before pouring
8.head fast mixing speed making high quality and high production product.

NO.	MODEL BH-PU09D	SPECIFICATION	UNIT
1	STATIONS	48/60/80	NOS
3	TOTAL POWER	52	KW
4	MIXING HEAD	8500	R.P.M
5	HEAD	FIXED/MOVABLE
6	MOULD OPENING/CLOSING	MANUAL/AUTO	-------
7	HEATING OIL CAPACITY	420	LITERS
8	PRODUCTION	25000/PRS	12 HRS
10	WEIGHT OF THE MACHINE	7.5	TONS
11	AC DRIVE	3	NOS.
12	TANK SIZE	250	LITERS
13	COVNEYOR HEATING SYSTEM	Infrared-tube/electric pipe/gas/oil
14	CLEARNING HEAD	MANUAL/AUTO
15	ALL MACHINE CAN BE CUSTOMIZED

Why Choose Yilian PU Shoes machine
. 15 years manufacturer experiences and 8 years exporter experience
. Good after-sales service,has after-sales office aboard,help installation,trial and trainning.
. high quality and imported spare parts makes machine good quality
Q1: Are you trading company or manufacturer?
A:We have a factory.You are most welcomed to visit us for any requirement.
Q2: What's the delivery time?
A:Around 15-20 days after we receiving your deposit.
Q3:Can we use our own brand?
A:Yes,we can accept OEM also.
Q4: What about your machine warranty?
A:Our machine's warranty is 1 year (from the installation date)for all machine parts.
Q5: If the machine's spare parts broke, where can I get ?
A:We will give you free spare parts along with the shipment.
In case some parts is broken during warranty,you can easily get them in our aftersales office aboard.
Q6:What is the material of your product?
A:We use 304 stainless steel for our main machine,conveyor use 5mm thinckess carbon steel,very solid and strong.Key electic component we are imported.
Q7:Do you also supply mould?
A:YES,we have shoe mould factory.We can make mould as per customer design.

---
