Qizhi Internal Installed Pneumatic/Hydraulic Flange Processing Machine

US$3,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
QZ3000MM
Type
Vertical Lathe
Processing Accessory
Flange
Tool Holder
Single
Power Source
Pneumatic
Controlling Mode
Pneumatic or Hydraulic
Automatic Grade
Manual
Setting Mode
Portable
Precision
High Precision
Certification
ISO 9001
Condition
New
Max. Processing Dia.
3050mm
Min. Clamping Dia.
1067mm
Max. Clamping Dia.
2850mm
Tool Stroke
102mm
Rotating Speed
0-12rpm
Air Flow
2.69m3/Min
Suitable for
Flange Facing Machine
Transport Package
Woodencase
Trademark
QIZHI
Origin
China
HS Code
9031809090
Production Capacity
200sets Per Year

Product Description

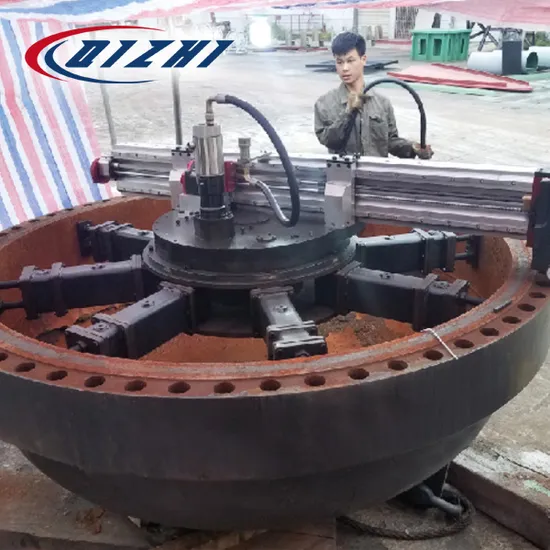

QIZHI Internal installed Pneumatic or Hydraulic Flange Facing Machine
The internal and external installed flange end facing machines adopt innovative design, adopting new linear ball screw technology and power feed tool holders. It has below features: Easy to assemble Independent locking base After product delivery, it can be immediately used for standard flanges and sealing grooves processing. Specifications
Model Facing Range Installation Mode Drive Mode
Pneumatic hydraulic
QZ180MME 0-7" 0-185mm External installed *
QZ300MME 0-12" 0-305mm *
QZ600MME 0-24" 0-610mm *
QZ355MM 2-14" 50-355mm Internal installed *
QZ610MM* 2-24" 50-610mm *
QZ860MM 6-34" 152-865mm *
QZ1000MM 6-40" 152-1016mm *
QZ1500MM 12-60" 305-1500mm *
QZ2000MM 24-80" 610-2032mm * *
QZ3000MM 42-120" 1067-3050mm * *
QZ3500MM 55-140" 1270-3556mm * *
QZ4000MM 60-160" 1524-4064mm * *

High torque precision transmission Power type rotatable tool holder Both axial and radial automatic tool feeding Quick assembly base
Wind Tower Fabrication Machine
QIZHI machine provides complete fabrication solution for wind tower fabrication, including plate cutting machine, plate rolling machine, shell and shell fitting up rotator, welding column and boom, grinding machine, repair machine, flange facing machine.
