Competitive Full Digital Veterinary Ultrasound Scanne

Product Description

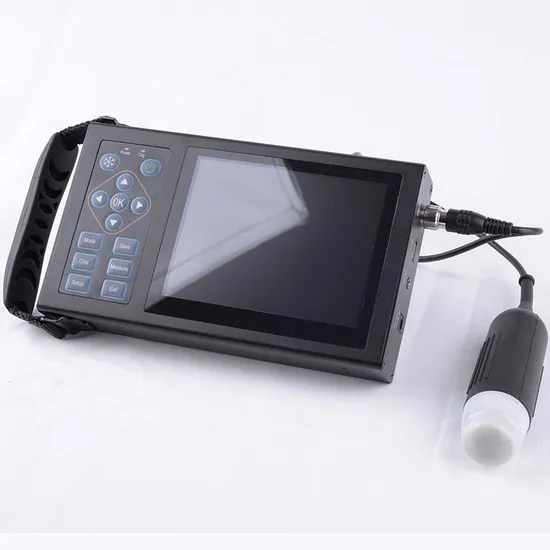

Product Description M10 mechanical fan scan ultrasound diagnostic instrument
1.Display: 5.6-inch LED display;
2.Scanning mode: 3.5m mechanical fan scanning;
3.Display mode: B, m, BM, B + B, 4b;
4.Fast backfat function (mobile caliper);
5.Preheat function: one button preheat function in winter, no need to worry about the probe freezing;
6.In addition, it has annotation function, which is convenient for text and body mark annotation;
7.Metal wire drawing fuselage, 35mm thick, metal texture, cool fuselage, high heat dissipation;
8.16 kinds of false color function;
9.Frequency conversion: 2.0MHZ, 2.5MHz, 3.5MHz, 4.0mhz, 5.0mhz;
10.Routine measurement: distance, perimeter, area, volume, angle, heart measurement and lean meat rate;
11.Specialized measurement: it has the function of gestational weeks setting, and can modify the gestational weeks of animals.Obstetric measurement of 8 kinds of animals
12.It has 256 frame movie playback function, which can be played back frame by frame and video playback, and can select any image measurement annotation to save frame by frame playback;
13.It has the functions of grid ruler and point ruler, which can read the size of the detected object quickly
14.Storage: the built-in 8g storage can store tens of thousands of pictures, and the external U disk storage can browse pictures on this machine and transfer the built-in pictures to U disk;
15.Dynamic range: 0-135db;
16.Image processing: gamma correction (0-7), frame correlation (0-3), edge enhancement (0-3), left and right flip (0-1)
17.The maximum display depth is 270mm;:
18.Interface: USB interface, video output interface (can connect video printer and monitor), power interface, probe interface;
19.Display magnification: 16 level magnification adjustment;
20.Gain range: 0-100db;
21.Near field adjustment range: - 31 ~ 0;
22.Far field adjustment range: 0 ~ 31;
23.With image rotation function, the image can be flipped up, down, left and right;
24.It has time and date, key tone switch, winter mode, parameter mode, standby protection, multi language selection, custom gestational age and other settings;
25.Large capacity lithium battery, imported 18650 standard cell, can work for about 5 hours;
26.Host size: 206x120x35mm (length x width x height);
27.Main engine weight: 950g;
28.No noise, high strength aluminum alloy metal shell natural heat dissipation design

Product Name	A6 Full Digital Veterinary Ultrasound Scanner
Host size	206x120x35mm (length x width x height);
Host weight	950g
Far-field adjustment range	0~31
Near field adjustment range	-31~0
Gain range	0~100dB
Display magnification	16 display modes
Resolution	lateral ≤2mm, axial ≤1mm
Geometric accuracy	horizontal ≤ 5%, vertical ≤ 5%
Interface	USB, TF card, VIDEO
