Fast Speed Full Automatic Single PE Film Coated Elite Paper Cup Making Machine

Product Description

Products description:

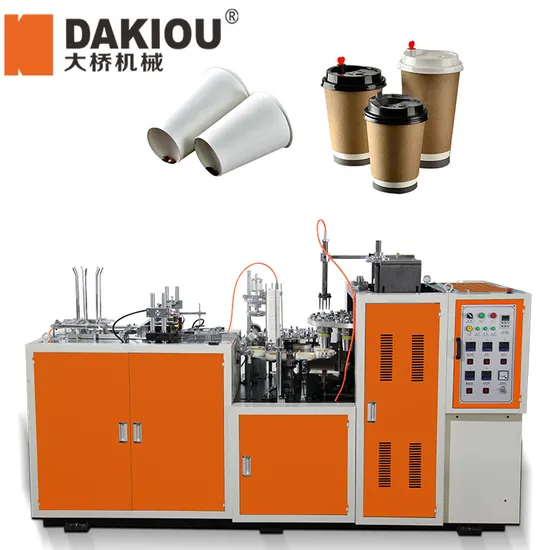

ZB-D paper cup machine is improved based on the normal chain driving type. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, and bottom punching, heating, rolling, rimming,rounding and tripping. It is idea equipment for producing drinking cups, market cups, coffee cups,advertising cups, etc. It is widely used for hot drink and beverage.
If you need double PE coated paper cups or paper gram higher 250g/m2,we recommend you to use Ultrasonic paper cup machine. It can produce single PE coated paper cups and double PE coated paper cups.
Technical Specification:

Type:	ZB-D
Cup size:	2.5-12oz(if the cup is more than 12oz the machine designed more lager )
Suitable paper material:	150-300g/m2(single PE-coated paper)
Capacity:	50-70pcs/min
Power source:	380V 50HZ
Total power:	4KW
Weight:	2000kgs
Package size:	2600 x 1350 x 1700 mm
Working Air Source:	Air pressure 0.4Mpa;Air out-put:0.6m3/min

Detailed Images:
1.Use gear driving system instead of chain, more stable running and speed up.
2.Use automatic lubrication recycle system instead of oiling by hand to reduce the friction and wear between gears, improve the machine safety and reduce the cost of maintenance.
3. We use 125 type gear box, which is longer life and more accurate.Normally,100 type gear box is used.
4.100 type speed reducer is used instead 80.
5.New design knurling wheel is used to guarantee the even pressure and better bottom sealing.
6. Cup folding parts is controlled by three separate cams, and each folding clip can be adjusted by itself.
7. We use manipulator to transfer the cup body instead of falling itself by pipe,It is more stable and
accurate under the fast running.
FAQ:
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins,from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs.We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.

---
