Zhangjiagang Plastic Mixer Machine with PVC Powder

Product Description

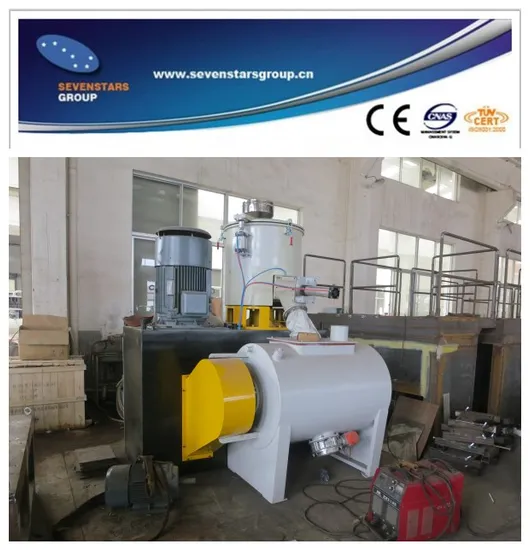

Zhangjiagang Plastic Mixer Machine with PVC Powder
Main applications:
1. SRL-Z series plastic Powder mixer Machine is applicable for mixing, colouring and drying of various resin such as poly, PE, PP, PVC polypropylene, poly chloride etc.
2. The unit combines hot mixer and cooler mixer together. The material will get into cooler mixer for cooling automatically when they finish heating, exhausts remaining gases and avoids agglomeration. Through setting the time or temperature, the machine can be operated automatically.
3. This unit is developed by importing and absorbing foreign advanced technology. By adopting PLC control, it features high automatic level, good mixing effect, complete function, compact structure and beautiful appearance. It is the ideal equipment for plastic mixing.
4.Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoic deforming.
series of various plastic mixer:
1. SRL-Z series mixer unit, SRL-Z 200/500, SRL-Z 300/600, SRL-Z 500/1000, SRL-Z 800/1600,
2. SHR series mixer unit, SHR200A, SHR300A, SHR500A, SHR800A, SHR1000A
3. Horizontal mixer unit SHL 1000/3000, SHR series mixer unit, SRL-W500/1600, SRL-W800/2500 etc.

Moel	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total capacity(L)	100/200	200/500	300/600	500/1000	800/1600
Effcientoolum (L)	65/130	130/320	200/400	350/640	500/1100
Motor power KW	14/22/7.5	30/42/11	40/50/15	47/67/15	60/90/18.5
Paddle Speed	650/130/180	475/950/130	475/950/130	430/860/60	370/740/50
Water consumption	3T/H	4T/H	4T/H	5T/H	6T/H
Heat.colling way	electric self-friction water cooling	electric self-friction water cooling	electric self-friction water cooling	electric self-friction water cooling	electric water cooling
Mixing time(min)	8-10
Outline dimensionmm	2500 ×2000×2200	4500 ×2200×2500	4500 ×2200×2500	4600 ×3000×4000	4800 ×3800×6500
Weightkg	3T	3.5T	3.5T	4.5T	6T

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.
We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.
As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.
Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.
Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.

---
