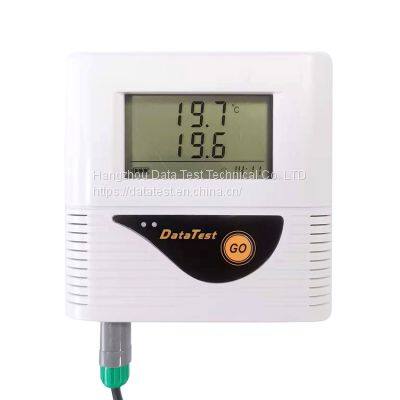

SMS Alarm/Telephone Alarm Temperature Recorder
According to the requirement of the domestic relevant certification now, food, medicine, electronics and chemical industry warehouses, cold storage, a cool library, laboratory, purifying workshop, electronic packaging materials warehouse, truck and so on environment is the requirement of temperature automatic monitoring and recording, our company has developed a large screen smart SMS alarm telephone warning electronic temperature recorder. To achieve the purpose of 24 hours unmanned monitoring, as long as there is a temperature and humidity over the limit, will be sent to the administrator at the same time (3) or phone to the administrator. In order to achieve timely control, so as to avoid unnecessary losses. The schematic diagram of the product is as follows:
1、Features:
⊕ Reusable, no supplies
⊕ Record Internal（1s～24h），can change
⊕ Measuring temperature range widely, lowest:-99.9℃
⊕ Good interchangeability of probe
⊕ Switch ℃ and ℉
⊕ ABS Engineering plastic shell
⊕ Ultra-low power design, battery life: 1-2 years
⊕ The upper and lower limits of temperature can be set, with buzzer alarm function.
This product truly achieves the requirements of 24-hour monitoring
⊕ Data: curves and reports in two formats. Including analysis of minimum, maximum and average temperatures.
Data can be saved in EXCEL and TXT formats
⊕ Large LCD display: temperature, time, battery capacity, alarm, etc
⊕ Stop mode: “Full Stop” “Cycle Stop” “Timing Stop” “Specified Times”
2、2、Technical Parameters
Temperature Range
| -40℃~100℃
|
Accuracy
| ±0.5℃
|
Resolution
| 0.1℃/F
|
Storage
| 32000 Piece
|
Alarm Setting
| Standard: telephone alarm or SMS alarm, software Settings, choose one
|
Refresh Rate
| 1s or Synchronize with the recording interval
|
Record Internal
| 1S~24H Can change
|
Communicative Connector
| Standard：232 serial port.Optional：USB 2.0 port
|
Battery Life
| High energy lithium battery, 1~3 years (depending on frequency of use)
|
Storage Environment
| -20℃~70℃
|
Size
| 102 mm×109 mm×29 mm
|
Accessories Included
| USB data cable, warranty card, certificate and professional software (optional with 9-24V power adapter)
|
3、Typical Application
Large screen electronic temperature recorder is widely used in medical industry, electronic industry, food industry, transportation industry, agricultural research, chemical industry, textile industry, meteorological environmental protection, HVAC refrigeration, archives management, biochemical laboratory and other fields.
>>
