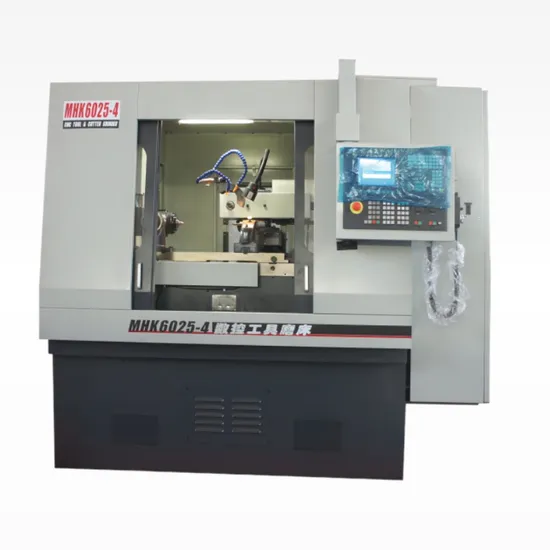

Grinder Surface Multi-Use Machine CNC Tool and Cutter Grinding Machine

Product Description

Features
The machine has all functions of the universal external grinder and the universal tool and cutter grinding machine. It is designed so carefully that it has a nice appearance reasonable construction ,good perfomance and reliable accuracy The worktable can be reciprocated automatically droved by the hydraulics (speed stepless)or manual operation .
The operations are easy and convenient .it can perfomm either the "wet" or the "dry" grinding works .
The unique muitipurpose functions can carry out high quality grinding works for internal or extemal cylindrical taper workpiece.flat surface ,oblique plane and slot .
It is also used for sharpening various kingds of tool and cutters .such as milling cutters ,reamers pinion cutters ,lather and planning tool etc The special accessories with the machine provide to the users for easy operation
Specification Parameter

Item	Unit	MHK6025-4	MHK6025-3	MHK6025-4
No.of controlling axes		2	3	4
Max.Swing diameter overtable	mm	250	250	250
Distance between front and rear centers	mm	450	450	450
Table longitudinal traverse	mm	400(X-axis)	400(X-axis)	400(X-axis)
Working surface of table	mm	900*135	900*135	900*135
Max.swivel of wheelhead in horizontal plane	°	360	360	360
Max.swivel of wheelhead in vertical plane	°	±15	±15	±15
Vertical traverse of wheelhead	mm	200	200(Y-axis)	200(Y-axis)
Cross traverse of table	mm	200	200(Z-axis)	200(Z-axis)
Resoution of X,Y,Z axis	mm	0.001	0.001	0.001
Resoution of A axis	°	0.001	0.001	0.001
Grinding spindle speed	r/min	3000/5600	3000/5600	3000/5600
Taper hole of workhead spindle		Morse 5	Morse 5	Morse 5
Max.swivel of workhead in horizontal plane	°	360	360	360
Drive motor power	kw	1.1	2.2	2.2
Net weight	kg	1150	2800	2800
Machine overall dimension	mm	1850*1500*1900	1850*1500*1900	1850*1500*1900

Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.

Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.

Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.

Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
