US$270,491.00
|
1 Piece
(MOQ)
|
Basic Info.
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
>300MPA
Crushing Degree
Coarse Crusher
Finished Surface
Outer Surface Process
Material of Wear Parts
Mn18cr2
Working Circumstance
Normal
Transport Package
Wooden Tray
Production Capacity
300 Sets/Y
Product Description

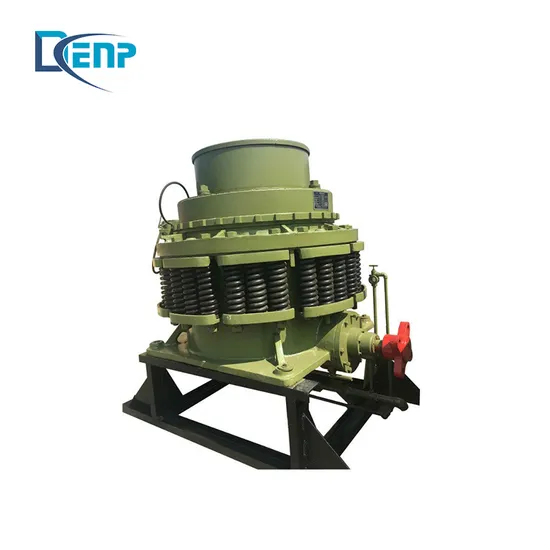

Cone crusher is widely applied in metallurgical, construction, road building, chemical and phosphatic industry. Cone crusher is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc. Type of the crushing cavity is decided by the application of the ores. Standard type is for PYZ (secondary crush); middle type is for PYD (tertiary crush); short-head type is for primary and secondary crush.
Features
1. high productivity; high quality
2. less machine stop time
3. easy maintenance and low cost
4. unique crushing ability in primary, secondary and tertiary crushing
features and value:
High capacity and yield
High equipment quality
Easy and cost-effective maintenance
Application flexibility
Easy to operate
Durable parts
Structure & operation principles
The cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.
During operation, the motor drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
Size (AF36)PYYX-0912 (AF45)PYYX-1112 (AF60)PYYX-1612
| Feeding Size mm(in.) | E C C | Size of Screen mm(in.) | Crushing Capacity (t/h) | E C C | Size of Screen mm(in.) | Crushing Capacity (t/h) | E C C | Size of Screen mm(in.) | Crushing Capacity (t/h) |
| Max. | Min. | 5 ( 3 /16) | 13 ( 1 /2) | 20 ( 3 /4) | 30 (1 3 /16) | 5 ( 3 /16) | 13 ( 1 /2) | 20 ( 3 /4) | 30 (1 3 /16) | 40 (1 1 /2) | 13 (1 1 /2) | 20 ( 3 /4) | 30 (1 3 /16) | 40 (1 1 /2) |
100 (4) | 0 | M | 30 | 60 | 85 | 115 | 125 | M | 45 | 90 | 125 | 165 | 205 | 205 | M | 130 | 185 | 225 | 320 | 485 |
| L | 30 | 65 | 95 | 130 | 145 | L | 50 | 100 | 140 | 195 | 250 | 260 | L | 150 | 215 | 295 | 375 | 575 |
20 (3/4) | M | 25 | 50 | 75 | 100 | 105 | M | 35 | 75 | 105 | 150 | 165 | 170 | M | 115 | 160 | 220 | 280 | 405 |
| L | 25 | 55 | 80 | 110 | 120 | L | 40 | 85 | 125 | 170 | 210 | 215 | L | 130 | 185 | 255 | 325 | 475 |
80 (3 1 /8) | 0 | M | 30 | 70 | 95 | 120 | 125 | M | 50 | 100 | 145 | 190 | / | 205 | M | 145 | 210 | 290 | 360 | 485 |
| L | 35 | 75 | 105 | 145 | 150 | L | 55 | 110 | 155 | 220 | 260 | 265 | L | 170 | 240 | 335 | 420 | 580 |
20 (3/4) | M | 30 | 55 | 80 | 110 | 105 | M | 40 | 80 | 115 | 155 | / | 165 | M | 120 | 170 | 235 | 295 | 400 |
| L | 30 | 60 | 85 | 115 | 120 | L | 45 | 90 | 130 | 180 | 210 | 215 | L | 140 | 200 | 275 | 345 | 415 |
60 (2 3 /8) | 0 | M | 35 | 80 | 110 | / | 130 | M | 50 | 105 | 150 | 200 | / | 205 | | | | | | |
| L | 40 | 90 | 125 | / | 150 | L | 60 | 130 | 185 | 260 | / | 165 | | | | | | |
13 (1/2) | M | 30 | 65 | 95 | / | 105 | M | 45 | 90 | 130 | 165 | / | 170 | | | | | | |
| L | 35 | 70 | 105 | / | 120 | L | 50 | 110 | 155 | 210 | / | 215 | | | | | | |
20 (3/4) | M | 30 | 60 | 85 | / | 100 | M | 40 | 85 | 120 | 160 | / | 160 | | | | | | |
| L | 30 | 65 | 95 | / | 115 | L | 45 | 100 | 145 | 200 | / | 205 | | | | | | |
40 (1 1 /2) | 0 | M | 45 | 100 | 130 | / | 130 | | | | | | | | | | | | | |
| L | 50 | 110 | 150 | / | 150 | | | | | | | | | | | | | |
13 (1/2) | M | 35 | 75 | 105 | / | 105 | | | | | | | | | | | | | |
| L | 40 | 85 | 120 | / | 120 | | | | | | | | | | | | | |
20 (3/4) | M | 30 | 65 | 95 | / | 100 | | | | | | | | | | | | | |
| L | 35 | 75 | 105 | / | 115 | | | | | | | | | | | | | |
Relevant client case
Sand Making Solution for 800T/H Limestone in Suzhou, Shanxi Province
| Day operation amount:0 |
| Feed requirements:≤1500mm |
| Composition: |
| The main equipment:limestone etc. |
| |
Solution for 150T/H Gold Ore in Hubei Province
| Day operation amount:0 |
| Feed requirements:≤630mm |
| Composition: |
| The main equipment:gold or silver ore etc |
| |
Crushing Solution for 300T/H Iron Ore in Zanhuang Hebei Province
| Day operation amount:300T/H |
| Feed requirements:≤630mm |
| Composition: |
| The main equipment:iron ore |
| |
>>
