NANBEI INSTRUMENTS Lab Tension and Compression Digital Spring Tester Price Product Description
Application & Description:

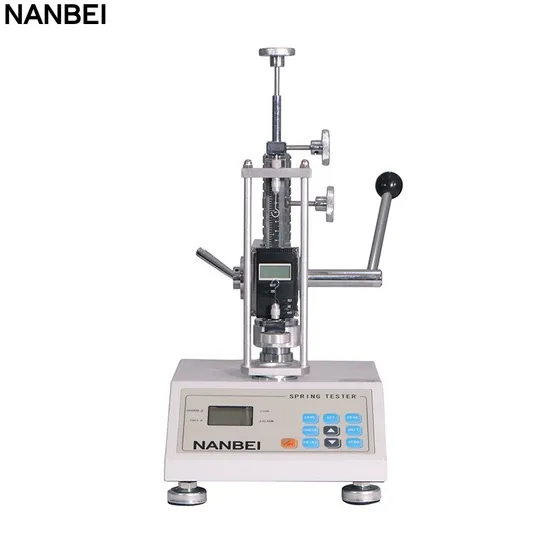

NTH series of digital spring tension and compression testing machine is to test the tensile, compression spring deformation and load characteristics of the special equipment.
For tensile and compression springs under a certain length of work load test, can also be used for spring, rubber and other elastic device elastic load test. The instrument has a print with no print.
Parameter:
1.high-precision high-resolution: precision 1, the minimum reading of 0.001N;
2.three kinds of display options: real-time, peak, automatic peak;
3. three units of conversion: N, kg, lb
4.the peak to maintain the function: to capture the test peak;
5.the comparison function: the upper and lower limits of free deviation set, the alarm lights were to traffic lights and peak automatic alarm;
6.the automatic peak function: peak hold time (1 to 99 seconds) free to set;
7.automatic shutdown function: 0 ~ 99 minutes no operation automatically shut down (0 seconds that does not auto-matically shut down
8.gravity acceleration function: according to different regions, can be freely set (9.000 ~ 9.999);
9.the calculation function: connected to the computer, you can automatically calculate the maximum value of each test,the minimum, the average;
10.built-in printer: can print 99 sets of stored measurement data and the maximum, minimum, average and so on.

Structure Instructions

Detailed Photos

Product Parameters
10N~30N Spring tester:

Model Number	NTH-10	NTH-20	NTH-30
Maximum testing load	10N	20N	30N
Minimum resolution	0.001N
Diameter of the platen	34mm
Maximum free length of measurable spring	80mm
Length of travel of the displacement scale	60mm
Division value of the Displacement scale	0.01mm
Indication error	±1%
Power Supply	AC 110-220V, 50HZ-60HZ
Power Capability(without printer)	13W
Power capability (with printer)	20W
Working temperature	20±10ºC
Temperature of storage and transportation	-27ºC~+70ºC
Relative temperature	15%~80%RH

Related Product
100-500N Spring tester:

Model Number	NTH- 100	NTH- 150	NTH- 200	NTH- 300	NTH- 500
Maximum testing load	100N	150N	200N	300N	500N
Minimum resolution	0.01N
Diameter of the platen	48mm
Maximum free length of measurable spring	150mm
Length of travel of the displacement scale	90mm
Division value of the displacement scale	0.01mm
Indication error	±1%
Power Supply	AC 110-220V, 50HZ-60HZ
Power capability (without printer)	13W
Power capability (with printer)	20W
Working temperature	20±10ºC
Temperature of storage and transportation	-27ºC~+70ºC
Relative temperature	15%~80%RH

1000-5000N Spring tester:

Model Number	NTH-1000	NTH-2000	NTH-3000	NTH-5000
Maximum testing load	1000N	2000N	3000N	5000N
Minimum resolution	0.1N
Diameter of the platen	108mm
Maximum free length of measurable spring	200mm
Length of travel of the displacement scale	150mm
Division value of the displacement scale	0.01mm
Indication error	±1%
Power Supply	AC 110-220V, 50HZ-60HZ
Power capability (without printer)	13W
Power capability (with printer)	20W
Working temperature	20±10ºC
Temperature of storage and transportation	-27ºC~+70ºC
Relative temperature	15%~80%RH
