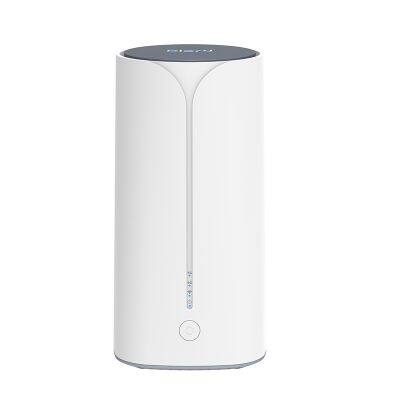

| Description | AX3000 wifi 6 SA NSA 5g wifi router with sim card slot |
| Item no. | HY8652 |
| Chipset | IPQ5018+SDX62 |
| CPU Frequency | Quad core 1GHz |
| RAM | 256MB |
| Flash | 4MB +128MB(NOR+NAND) |
| Interfaces | 1 x SIM Card Slot |
| 2x RJ45 10M/100M/1000M LAN Ethernet Interfaces | |
| 1 x RJ45 10M/100M/1000M WAN Ethernet Interfaces | |
| 1 x x Breathing Light Button | |
| 1 x Reset button | |
| 1 x DC port | |
| 1 x MESH button | |
| WIFI Antenna | 4 x 3dBi Internal 2.4G&5G Dual Band Antenna |
| 5G/LTE Antenna | 4 x 3dBi Internal Antenna |
| Power Supply | 12V/2A |
| Standard | 3GPP Release 16 NSA/SA operation, Sub-6 GHz |
| Frequency | 5G NR NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/78/ 79 5G NR SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/78/ 79 MIMO DL：4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 |
| Downlink Cat 19/ Uplink Cat 18 LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 MIMO DL: 4 × 4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26 B29/B30/B66/B41/B42/B43/B48/B71 WCDMA B1/ 2/ 4/ 5/ 8/ 19 | |
| Transfer Rate | 5G SA Transmission Speed:2Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed:2.2Gbps/576Mbps (up to ISPs) LTE : Down 600 Mbps；UP 200 Mbps |
| MIMO | DL: 4 × 4 UL: 2 × 2(only support 5G SA) |
| Output Power | 23dBm±2dBm; 5G NR n38/n41/n77/n78 HPUE 26dBm+2/-3dBm |
| Wifi Standard | 2.4G:802.11b/g/n /ax 2T2R MIMO 5.8GHz：802.11a/n/ac/ax 2T2R MIMO |
| Modulation Schemes | 5G: GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM WIFI: 1024-QAM / OFDMA |
| Transfer Rate | 2.4GHz: 600Mbps 5.8GHz:2400Mbps |
| WAN Type | 5G/4G/3G/2G or Wired |
| 5G/4G/3G Features | Auto-APN |
| Auto dial-up | |
| Roaming | |
| SMS(Send/Receive/Delete) | |
| USSD | |
| Data limted | |
| PIN Management | |
| Wifi | SSID, Broadcast and Hide Wi-Fi Name |
| WEP, WPA-PSK, WPA2-PSK, WPA/WPA2,WPA3 | |
| WiFi Frequency, Channel, Bandwidth | |
| MAC IP Address Blacklist and Whitelist | |
| MESH | |
| Firewall | NAT(DMZ, UPNP) |
| telnet, ping, http | |
| Defense Dos Attacks | |
| User Define to Prevent Attacks | |
| Management | User Access Restrictions |
| URL Filter | |
| QOS speed limit | |
| System Log | |
| System Settings | |
| Traffic Statistics of Wireless and Ethernet Networks | |
| Ping or Traceroute to Check the Network Working Status | |
| Iperf Speed Test | |
| VPN(PPTP Client/L2TP Client/PPTP Server) | |
| TR069 Remote Management | |
| TR181/TR104/TR140/TR143/TR157(periodicstatistics) | |
| IPV4/IPV6 | |
| Upgrade Firmware from Local or OTA | |
| Operating Environment | Operating Temperature:Normal:0°C to +45°C; Operating Temperature:-20° C to +70° C Operating Humidity:5%~ 95% Storage Humidity:5%~ 95% |
| Dimension | Device: 295*130*129mm CTN size: 55*28*31.3 CM, 10pc/ctn G.W.: 9.24 KGS |
