Hot Sale Vmc850 High Precision CNC Milling Cutting Drilling Tapping and Engraving Vertical Machining Center CNC Machine

Product Description

Product Description
The 4 axis VMC-850 is a high performance CNC vertical machining center developed and manufactured by our Wayne company. The machine has the characteristics of high rigidity, high speed and high precision and has more advantages on operation and capabilities compared with similar products. All castings of the machine have been secondary tempered to provide excellent rigidity and stability for the whole machine. This machine applied with high rigid C design on structure, it also has been done with reinforcement on machine ribs.All the contact faces have been scraped manually, which guarantees the durability of accuracy. X/Y axes apply with two types of rolling guide way: ball bearing and roller guide way, which is optional that customer can choose base on customer's needs. Z axis applies roller guide way, which enables the machine to be with high rigidity, low noise, and small friction. The machine equips with an air tank, and the water can be drained out manually. Spindle is connected directly, and the highest speed can reach 10000RPM, which make this machie as a good choice for machining some complex parts with high efficiency.

Main Features
Mitsubishi M80 control system High speed and precision spindle Excellent chip flushing system Excellent structure design High rigidity of the whole machine Excellent worktable size: 500mm*1000mm Excellent load capability of worktable: 200kg

ITEM	MODELS	VMC850
WORKTABLE (WIDTH*LENGTH)	mm	500x1000
DISTANCE BETWEEN T SLOTS	mm	5-18x100
MAX LOAD BEARING OF WORKTABLE	kg	600
X/Y/Z AXIS TRAVEL	mm	800/500/500
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	110-810/110-610
SPINDLE HOLE TAPER	-	BT40
SPINDLE SPEED RANGE	r/min	12000
SPINDLE MOTOR POWER	kW	7.5
X/Y/Z RAPID FEED SPEED	m/min	36x36x36
MAX CUTTING FEED SPEED	mm/min	12000
TOOLS MAGAZINE CAPACITY	pcs	24
X/Y/Z POSITION ACCURACY	mm	0.005
X/Y/Z RE-POSITION ACCURACY	mm	0.003
MACHINE DIMENSION	mm	2495x1970x2360
MACHINE WEIGHT	kg	5000

Standard Configuration for VMC Series 1. Full Cover shield
2. Self-lubrication system
3. Working lights
4. Warning lights
5. Working condition warning lights
6. Self-powered electrical shutoff system
7. Clean air gun/ Water Tank / Transformer
8. Spindleair curtain and dust control system
9.10000 RPM spindle
10.Worktable cleaning water gun
Optional Configuration for VMC Series 1. 24 disc manipulator tool magazine
2.Crawler chips remover
3. NCrotary table (4 Axis)
4. CTS
5. Tooldetection system
6,. AJO
7. 12000 & 15000 RPM Direct connection spindle
8. Oil mist purifier

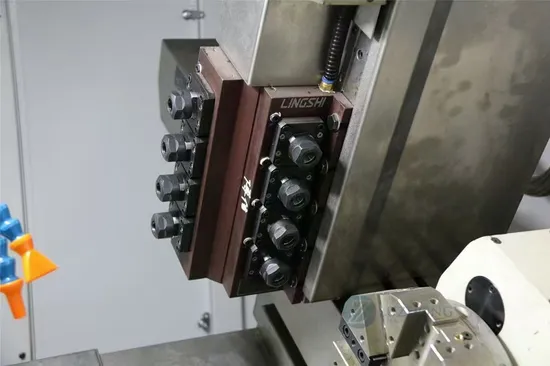

Detailed Photos

Packaging & Shipping
FAQ
1. Is it all right to make customer's own brand name? A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer with Laser machine and CNC lathe machine

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB Qingdao.

5. What's your payment term?
A: T/T OR L/C at sight.

---
