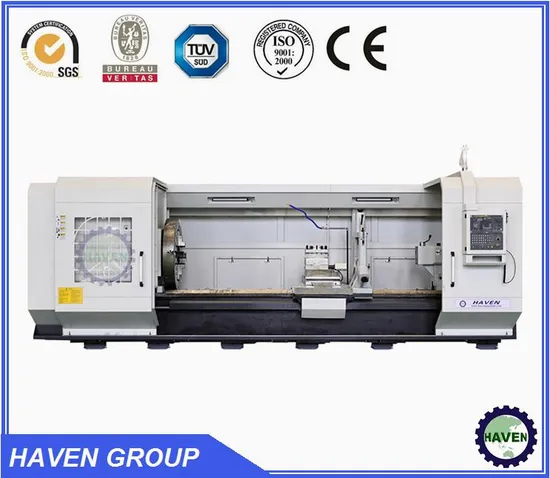

Horizontal Type CNC Lathe Machine

US$5,000.00-200,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK61100/3000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. swing diameter over bed
1000mm
Distance between centers
3000mm
Guideway width
755mm
Loading weight
6T
Transport Package
Iron Pallet
Specification
CK61100/3000
Trademark
HAVEN
Origin
China
HS Code
8462
Production Capacity
30 Units/Month

Product Description

CNC Horizontal Lathe Machine
Main Introduction :
CK series CNC lathe is universal standard automatic machining equipment for metal processing , suitable for to process big size shaft and plate work piece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surface, as well as turning various type of threads etc.
Main Parameter:
Specification CK6180 CK6180 CK61100 CK61100
Manual HYD. Manual HYD.
Capacity Swing over bed mm 800 1000
Swing over cross slide mm 480 680
Distance between centers mm 1000-8000 1000-8000
Guideway width mm 600 600
Max. load capacity T 4 4
Spindle Spindle bore mm 104 104
Spindle bore taper - Metric φ120/MT5 Metric φ120/MT5
Spindle nose type - C11 C11
Spindle speed steps - VF. 3 steps HYD. 4 steps VF. 3 steps HYD. 4 steps
Spindle speed range rpm 10-800 17-800 10-800 17-800
Chuck Mm φ400 3-jaw manual φ400 3-jaw manual
Turret Turret/tool post - NC turret 4 position NC turret 4 position
Tool shank size mm 32 x 32 32 x 32
Feed
 X axis travel mm 420 520
Z axis travel mm 850/1350/1850/2850/3850/4850/5850/6850/7850
X axis rapid traverse mm/min 10000 10000
Z axis rapid traverse mm/min 8000 8000
Tailstock Tailstock quill diameter mm φ120 φ120
Tailstock quill taper - MT6 MT6
Tailstock quill travel mm 250 250
Motor Main spindle motor kw 15 15
Coolant pump motor kw 0.125 0.125

Specification UNIT CK61100 CK61125 CK61140 CK61160
Capacity Swing over bed mm 1000 1250 1400 1600
Swing over cross slide mm 610 850 1000 1200
Distance between centers mm 1500-8000 1500-8000 1500-8000 1500-8000
Guideway width mm 755 755 755 755
Max. load capacity T 6/10 6/10 6/10 6/10
Spindle Spindle bore mm 130 130 130 130
Spindle bore taper - Metric φ160/MT6 Metric φ160/MT6 Metric φ160/MT6 Metric φ160/MT6
Spindle nose type - A2-15 A2-15 A2-15 A2-15
Spindle speed steps - VF. 4 steps VF. 4 steps VF. 4steps VF. 4steps
Spindle speed range rpm 4-300 4-300 4-300 4-300
Chuck mm φ1000 4-jaw manual φ1000 4-jaw manual
Turret Turret/tool post - NC turret 4 position NC turret 4 position
Tool shank size mm 40 x 40 40 x 40 40 x 40 40 x 40
Feed X axis travel mm 520 620 720 720
Z axis travel mm 1350/2850/3850/4850/5850
X axis rapid traverse mm/min 4000 4000 4000 4000
Z axis rapid traverse mm/min 6000 6000 6000 6000
Tailstock Tailstock quill diameter mm φ160 φ160 φ160 φ160
Tailstock quill taper - MT6 MT6 MT6 MT6
Tailstock quill travel mm 300 300 300 300
Motor Main spindle motor kW 22 22 22 22
Coolant pump motor kW 0.25 0.25 0.25 0.25
