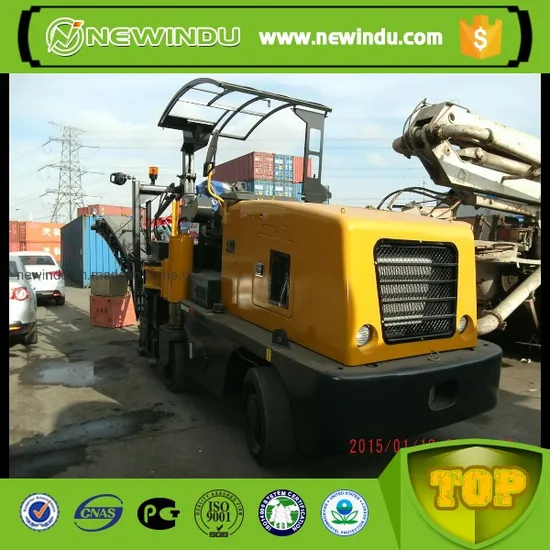

Road Construction Xm200 Road Milling Machine with Free Spare Parts

Product Description

Road Construction Xm200 Road Milling Machine With Free Spare Parts
Products Description * The XM200K road milling machine is mainly composed of milling rotor driven by machinery and two groups of belt conveyors.
* All chassis with strong torque resistance are made of sectional materials, steel plates with high strength and can withstand deformation under the condition of various loads and terrains.
* The machine is equipped with four crawler steering system auxiliary by flick-type hydraulic power. It can make steering of four types, namely, front axle, rear axle, full crawler or crab-walk.
* The full automatic power regulator can make the engine load automatically realize the mutual matching between the milling and driving power.
* There is a set of high-voltage watering device around the milling rotor, which can effectively clean the dust and cool the milling tools to extend its service life.
* The machine is equipped with the standard sound-proof device to prevent environment from the noise.
* It is equipped with LCD with large screen, which can display rotating speed, hour meter, temperature of the engine cylinder elimination of common malfunction and others in real time, in addition, it is equipped with charge indicator of accumulator, pressure gage of the control system, belt conveyor and pressure gage of crawler belt drive system and alarm lamp of filter etc.

Product Paramenters

Item		Unit	XM200K
Maximum milling width		mm	2000
Maximum milling depth		mm	320
Milling wheel	Tool spacing	mm	15/18
	Number of tools		168/146
	Milling wheel diameter (with tool)	mm	980
	Milling wheel maximum inclination	°	5
Diesel engines	Cooling method		Water cooling
	Model		QSX15
	Number of cylinders		6
	Rated power	kw	447
	Engine speed	rpm	2100
	Fuel consumption: full load	l/h	120
Speed/grade ability	Working speed	m/min	0-84
	Walking speed	km/h	0-5
	Theoretical Gradeability (Working Blocks)	%	80
	Ground clearance		320
Weight / load	Shipping weight	kg	30000
	Working weight	kg	34000
Track device	Front track	mm	1720×300×620
	Rear crawler	mm	1720×300×620
Box volume	Fuel tank	L	1400
	Hydraulic tank	L	300
	Water tank	L	3400
	Electrical system	V	24
Conveyor belt device	Aggregate conveyor belt width	mm	800
	Discharging conveyor width	mm	800
	Conveyor belt conveying capacity	≤m3/h	330
Shipping dimensions	Machinery (length×width×height)	mm	7650×2580×3000
	Belt conveyor (length × width × height)	mm	8060×1150×1500
