Basic Info.
Shade Material
Aluminum +PC
Lamp Holder/Base
T8 Integrated Lamp
Certification
CE, RoHS, ETL, PSE, SAA, EMC
Transport Package
Blister
Specification
124*19.5*19.5cm
Production Capacity
120000pieces/Year
Product Description
T8 LED Tube are designed to replace traditional linear fluorescent light. They are frequently used to update and convert offices or warehouse spaces to more energy efficient lighting systems.
Size | 1200*28MM |
Power | 18W |
Lumens | 120LM/W |
Input Voltage | AC85-265V 50-60HZ |
CCT | 3000-6500K |
CRI(Ra) | 80 |
PF | 0.9 |
Life Time | 30000H |
IP Rate | IP65 |
Beam Angle | 360° |
Optional models can be selected |
Specification Size(mm) | 600*28mm | 900*28mm | 1200*28mm | 1500*28mm |
Power | 9W | 12W | 18W | 22W |
Input Voltage | AC85-265V |
CCT | 3000-6500K |
Lumen | 120LM/W |
Power Factor | 0.9 |
CRI | 80 |
Humility | 20%-80%RH |
LED Qty (SMD2835)/PCS | 72 | 96 | 120 | 144 |
Packing Size(cm) | 64*19.5*19.5 | 94*19.5*19.5 | 124*19.5*19.5 | 154*19.5*19.5 |
6000-6500K 4000-5000K 3000-4000K
Specification | Length | Pipe inner diameter | Pipe outer diameter | Waterproof cord length |
2FT/600MM | 600mm | 26mm | 28mm | 30cm or customization |
3FT/900MM | 900mm | 26mm | 28mm | 30cm or customization |
4FT/1200MM | 1200mm | 26mm | 28mm | 30cm or customization |
5FT/1500MM | 1500mm | 26mm | 28mm | 30cm or customization |

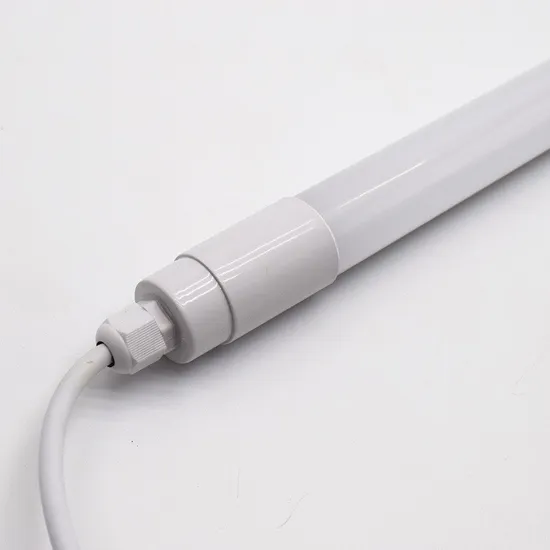

T8 led waterproof led tube is widely used in the Swimming pool ,Freezer ,fishtank ,farms ,super-markets and other outdoor areas.
Company ProfileFounded : 2009
Registered: Hong Kong and Shenzhen in 2010. Create the brand "ORM" in 2012. 13 years of design research and development experience. The benefits of the development of LED lighting technology and standardized production are to personalized stylish, efficient, energy-saving, heathy and environmentally friendly lighting and provide excellent service to lead the industry in the future. Main Products: LED Tube Light, LED Panel Lights. High Bay Light, Led Grow Light .
Customized services: product customization, OEM, ODM
Certificates: UL, ETL. CE. RoHS, SAA
Trade Capacity
International Commercial: FOB, EXW, CIF
Terms(Incoterms):
Terms of Payment: T/T, Paypal
Average Leas Time: Peak Season Lead Time: one month,Off Season Lead Time: within 15 workdays
Number of Foregin Trading Staff: Above 20 People
Export Year: 2012-6-18
Export Percentage: 70%-80%
Main Markets: South America, Europe, Australia, Asia
Nearest Port: Shenzhen, Guangzhou
Import & Export Mode: Have Own Export License
Product CapacityFactory Address: Second Floor, Building B, Hengfeng Science and Technology Park, No. 2 Xinfeng Street, Changlong Community, Huangjiang Town, Dongguan City
R&D Capacity: OEM,ODM, Own Brand(ORM Lighting)
No. of R&D Staff: 5-10 People
No. of Production Lines: Above 10
Ever Annual Output of Main Products:
Product Name | Units Produced(Previous Year) |
LED Tube Light | 6400000 PCS |
LED Panel Light | 270000 PCS |
High Bay Light | 530000 PCS |
LED Smart Light | 810000 PCS |
