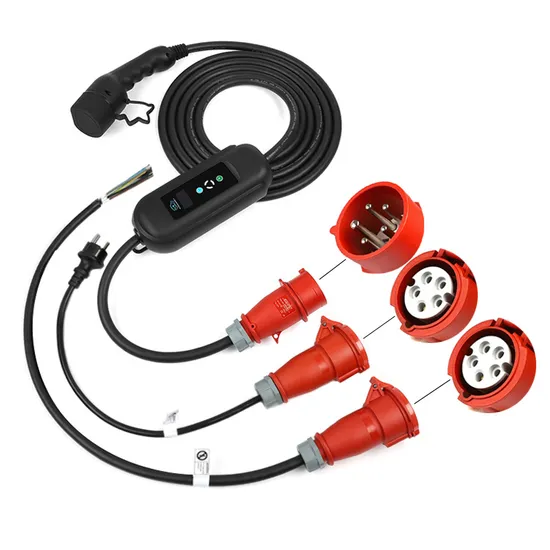

Charging Cable Type 2 3 Phase 32A Mode 2 IEC 62196 to Red Cee Plug with 5 Meters Cable

Product Description

Want a Reliable EV Charger Manufacturer to Support Your Project?
You'll Never Regret to Contact Us.

Product Description
Full Series EV Charger
All types of High Voltage Connector from OEM Manufacturer in China

Products complies with GB/T20234-2011 standard;
Various types for choice, include DC charging connector (125A, 250A current rating), AC charging connector (Vehicle side, power supply side,16A,32A current rating).
Humanized design with a good grasp feel, easy to use.
Various accessories available, protection cap include damping cap, metal string cap,etc.
The plug and socket termination type is wire crimping.
Degree of protection: IP55

Products Feature

EV Charger
Model	GB/T Series / SAEJ1772 / Type1 Series / Type2 Series / Cable Assembly
Connector Type	Plug / Receptacle / Dummy Socket
Type	AC / DC
Rated Current	16A / 32A / 70A / 80A / 125A / 200A / 250A
Application	Vehicle End / Power Supply Using

Material:
Shell: Thermoplastics
Insulator: Thermoplastic
Sealing Ring: Rubber Material
Insulator Flame Retardant Grade: Ul94-v0
Contact: Copper Alloy, Power Contact with Gold-plated, Signal Contact with Gold-plated
Environmental Performance:
Operating Temperature:-30ºC~+50ºC
Relative Humidity : 98% At40ºC
Degree of Protection: Ip55 (during Charging) Rating Current and Contact Resistance:
Rating Voltage: 250 / 440V AC, 750V DC
Insulation Resistance: ≥1000mΩ( AC Charging Connector); Durability: Exceed 10,000 Times (Non-charged State) Used for connection between the high voltage cables inside the electric vehicle.
Used for connection between the high voltage cables inside the electric vehicle.
PS: the Size is Manually Measured and Not Very Accurate, Please Refer to the Actual Product. If You Still Not Found a Suitable Product, Please Contact Us>> Company Information COMPANY INFORMATION
Renhao Weiye Technology (Wuhan) Co., Ltd.
- Have More Than 16 Years Experience on Electronic Connectors and Has Achieved Good Reputation in the Industry.
- We Acquired ISO 9001, ROHS, IP Waterproof Test ,Environment and Management Systems Certification to Ensure High Quality. Please Contact Us Free for More Details if Interested.
- in Addition, You Are Always Welcome to Visit Our Office and Factory for Face to Face Conversation!
Certificate
Production Equipment
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass

---
