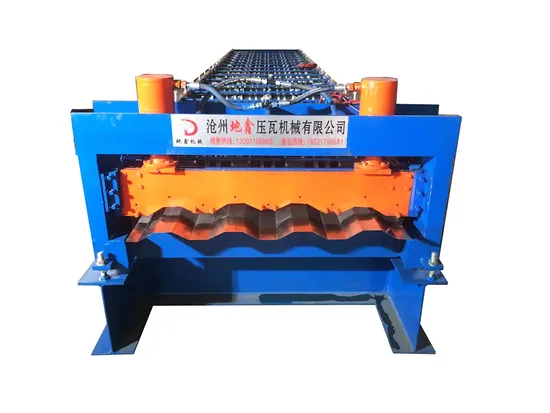

Metal Steel Shipping Container Plate Car Container Panel Roll Forming Machine

Product Description

Metal steel Shipping Container plate Car Container panel Roll Forming Machine
1. Main parameter of CE certificate lager size car panel roll forming machine:

1	Suitable material	Mild steel GI, steel
2	Raw material thickness	1.27mm (±0.3mm)
3	Main frame	20mm
4	Shaft	φ85mm ,45# steel with tempering 18shaft
5	Roller	GCr15 with quenching and Color-harden
6	Chain	2 inch Sprocket and chain
7	Main Motor	11 kw PM reducer
8	Forming speed	8-12m/min
9	Mould cutting material	Cr12 steel
10	Length of table	3 meters
11	Control system	PLC
12	Voltage	as your need

FAQ:
Q:How is this machine's service life?
In the normal maintenance,the service life at least 10 years. Q:How to maintenance?
If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years. Q:What can you do if the machine broken?
Our machine's warranty period is 1 year,if the broken parts can't repair, we can free send the new parts replace the broken parts to you; Q:Can you supply the raw materials?
Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil Q: How to contact with you?

---
