Basic Info.
Paper Core Usage
Paintings Packaging, Instrument Package, Industry
Tube Machine Type
Winding Machine
Reelpipe Speed
3-60 M/Min
Wall Thickness of Paper Tube
0.5-3 mm
After-sales Service
One Year Warranty
Paper Shelf Type
Integral Reel Stand
Cutting Way
Servo Synchronism Multi-Blade Cutting
Transport Package
Wooden Case
Specification
6000*1600*1600 mm
Production Capacity
20sets/Month
Product Description

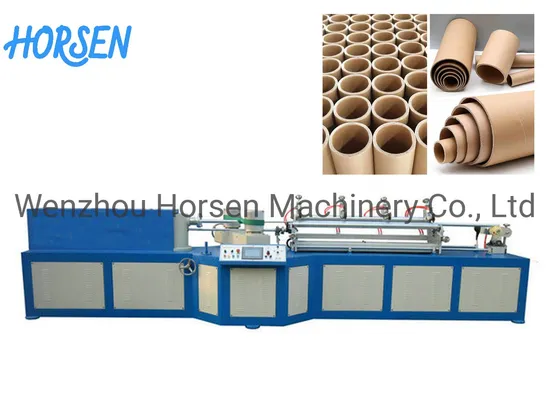

PAPER TUBE MAKING MACHINE
USE: Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy, food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
FEATURE: Numerical control servo cutter device, high precision cutting; Automatically cut, automatically fall pipe, automatically change speed and revert; With online multi-cut blades, no need secondary cutting, save labor and time. Stable production at the highest speed 45 m/min Specification:
| Technical Parameter |
| Number of roller | 3-8 layers |
| Tube diameter | 15-100 mm |
| Tube wall-thickness | 0.5-3 mm |
| Core mould fixed way | Flange chuck |
| winding head | 2 |
| Cutting way | Servo synchronism multi-blade cutting |
| Gluing way | Double sides |
| Operator | 1-2 person |
| Winding speed | 3-60 m/min |
| Speed control | Transducer |
| Mainframe size & Weight |
| Mainframe size | 6000*1600*1600 mm |
| Area space | 10000*10000 mm |
| Weight | 3000KG |
| Driving system |
| Main motor | 5.5 KW |
| Reducer type | WPDO155 |
| Reduce type | RV40-1:7.5 |
| Conveyor reducer type | 0.37 KW |
| Cutting motor | Servo motor |
| Cut left-right control | Synchronous belt + servo motor |
| Synchronism control cutting system | servo system |
| Glue pump | 750 W |
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any inquiry, pls feel free to contact us. We will try our best to satisfy with you !
>>
