12kw 15kw 20kw Metal Laser Cutting Machine for Types Structural Steel

Product Description

Product Description

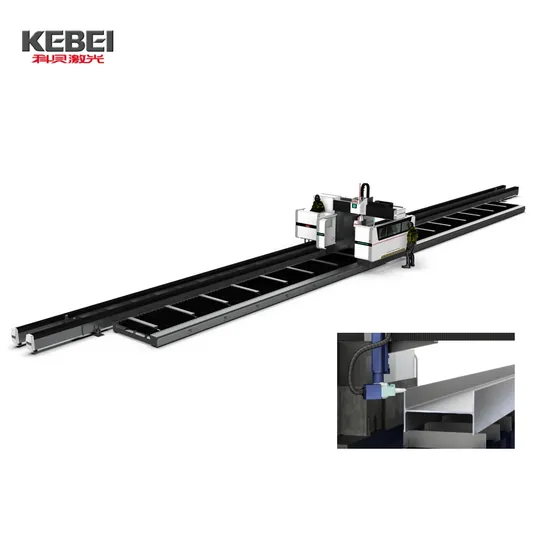

Cantilever Beam Laser Cutting Machine
Dual Station Design,loading and unloading at the same time, with high efficiency;
One-key nesting system, moving speed reaches 30m/min,convienet and fast;
It can realize cutting, beveling, marking functions;
The steel fabrication field is still using the traditional manual and semi-automatic material handling methods, and there is an urgent need for an efficient and high quality processing method to improve efficiency and quality, and reduce labor costs. We are committed to providing high efficiency, high precision, and high cost performance automatic processing equipment to solve these problems by providing high precision cutting and significantly reducing
Product Parameters
Compatible Materials Stainless steel Carbon steel Galvanized steel Cold rolled steel Titanium Electrolytic steel

serial number	name	Technical Parameters
1	Steel cutting range	Height B ≤ 450mm Width H ≤ 1000mm Length L≤ 26000mm (customized on demand)
2	Laser power	12kw/20kw/30kw
3	X-axis travel	26000mm
4	Y-axis travel	1750mm
5	Z axis travel	910mm
6	A-axis stroke (rotary axis)	±90°
7	C-axis stroke (rotary axis)	±90°
8	U axis travel (height adjustment axis)	0- 50mm
9	X/Y/Z maximum positioning speed	30m/min
10	X/Y/Z positioning accuracy	≤ 0.1 mm
11	Cutting accuracy	≤ 0.5 mm

Sample display



Packaging & Shipping
The transportation usually by sea.
We package and load it in the container then ship to foreignal country.


Company Profile
Wuhan kebei international trading Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel.
KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.
Certifications


Our Advantages
[Efficient] Dual-station processing, you can process and load materials at the same time
[Efficient] Cut a piece of steel in a few minutes
[Efficient] One hole in 3 seconds, one lock in 10 seconds
[Efficient] Renting a small factory can handle four or five times the original production capacity
[Intelligent] Automatic positioning, work is not tiring
[Intelligent] Import 3D drawings, simple settings can be cut
[Intelligent] No programming, easy to get started, even novices can operate, just click on the computer
[Intelligent] If you want to improve material utilization, you can use circular cutting
[Intelligent] In the past, you had to lie on the ground to draw lines to make big and small heads, now you can cut them by importing a drawing
[Processing types] Can cut H-shaped steel, flat plate, round tube, square tube, channel steel, angle steel, I-beam
[Processing types] One device can cut steel, flat plate, and even large round tube
[Processing types] Give me two minutes to help you get the big and small heads
[Processing types] With so many functions, why don't I take the job casually
[Processing types] 630MM round tubes, easily handled
[Processing types] H-shaped steel, flat plates, round tubes, square tubes, channel steel, angle steel, I-beams, it can handle them all
[Processing types] Cutting steel sections in one second, cutting flat plates in the next, cutting whole large round tubes in a moment, and beveling channel steel and angle steel
[High quality] Smooth cross section without burrs
[High quality] High-precision intelligent cutting, precision 0.2~0.5mm
[High quality] Good cutting can only make good welding, and it can be taken away and loaded after welding, saving processes without secondary processing
[Customization] If you have many types of processing, I can add several functions for you. If you have a large quantity, I can add several stations for you. If you have thick materials, I can also increase the power for you
[Function] Marking, punching, beveling, cutting, welding holes, marking, one machine to get it done
[Function] Access-Welding holes, beveling, marking, cutting off, these are all basic operations, z-shaped cutting, bevel cutting, convex cutting, more special-shaped cutting can be done

FAQ
* The equipment is equiped with RayCus or Max fiber laser, and the laser power can be selected from 12KW, 20KW,30KW,etc., depending on the customer's cutting needs. *The mechanical structure adopts gantry type, stable performance and stable operation of the equipment. *Professional BECKHOFF control system, with laser power adjustment function, can guarantee the cutting quality and the operation is simple and convenient;
*The equipment is equipped with HanLi water cooler to ensure that the laser maintains a stable temperature when working under high loads. *The equipment takes effective safety protection measures with graphite plate ,laser shield, emergency stop switch, access control protection , and meets CE safety standards.
1. I knew nothing about this machine, what kind of machine i should choose?
-So easy . Just tell us what you want to do by using laser machine, then let us give you perfect solutions and suggestions.
2. What can it Cutting?
-Laser machine for metal usually deal with carbon steel, stainless steel, aluminum, brass and alloy. Specializing in cutting H beam/H channel/H structure steel the first one.
3. How long is the warranty?
-We offer 1-year warranty.
4. Where is your headquarters?
-Our headquarters is in Wuhan,Hubei Province, China.
5. Can I visit your factory?
-Of course. Please contact us any time. We will arrange in advance.
6. Do you have engineer to teach me/my workers?
-Yes, we offer free training for each customer. We promise to help until everything gets right.

---
