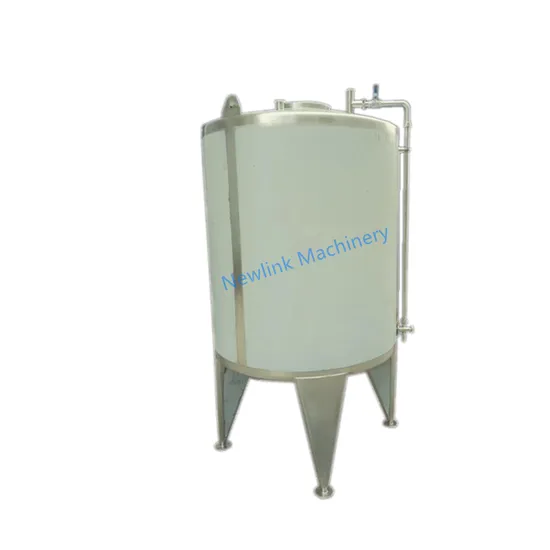

Distilled Water Storage Tank Stainless Steel Aseptic Storage Tank

Product Description

Best price customized stainless steel electric heating 500 liter liquid mixing tank This series liquid storage tank is widely used in dairy products, beverage, bio-engineering, pharmacy, meticulous chemical industry, etc. The kettle body is set up with interlayer and heat preservation layer which can heat up, refrigeration and keep warm.
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.
2. Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics of the storage tank:
1. Made of single-layer stainless steel structure.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure sanitation standard.
Configuration of storage tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements).
7. Ladder (According to customer requirements).
8. Liquid level meter and level controller (According to customer requirements).
9. Eddy-proof board.
It can be made according to special requirements of customers. Total height (H) is in accordance with outlet height of 800 mm. If outlet height is changed, then total height(H) shall also be adjusted
Technical Parameters

Effective volume	(D*H) Dimension of tank	(H) Total height	Diameter of inlet&outlet
(L)	(mm)	(mm)	(mm)
500	840*1000	2250	38
600	920*1000	2300	38
700	990*1000	2300	38
800	950*1220	2500	38
900	1010*1220	2500	38
1000	1060*1500	2850	51
1500	1160*1500	2850	51
2000	1340*1500	2900	51
3000	1410*2000	3400	51
4000	1620*2000	3450	51
5000	1810*2000	3500	51
6000	1980*2000	3550	51
7000	1930*2440	4000	51
8000	2060*2440	4000	51
9000	2180*2440	4050	51
10000	2300*2440	4050	51
12000	2270*3000	4600	51
15000	2530*3000	4700	51
20000	2640*3660	5400	51

Specification For 500 liter liquid mixing tank
unction: Preparing the juice, water together
Capacity: Customized
304 stainless steel construction
In-build thermal system
With blend function, come with 0.55Kw speed-adjustable blending motor
Introduction For 500 liter liquid mixing tank
1. blending speed and mixing power customized.
2. with jet type CIP cleaning ball or normal CIP ball
3. Sanitary ventilation pipe to defend against flies and insects.
4. speed Quick opening manway on blending tank top
5. Adjustable legs
6. Detachable blending paddle.
7. with Thermometer
8. if needed, a stainless steel Ladder (optional).
9. Level meter and level controller
Installation service
When you finish the Preparation conditions,our professional after sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide 12 months Quality warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months Quality guarantee and life-long technical support.
8. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
For More Information About it ,Please Feel Free To send Inquiry to Us

---
