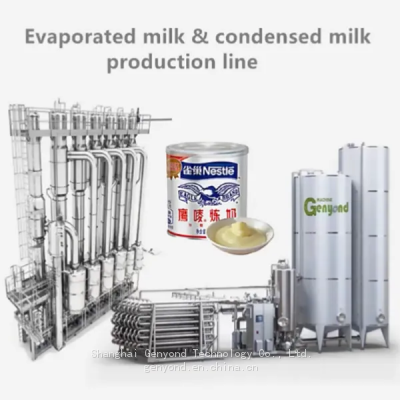

Evaporated condensed milk production line

Product Details

Product Description

Product Description
Evaporated condensed milk production line
Evaporated/condensed milk is a kind of milk product, which is made of fresh milk or goat milk after disinfection and concentration. Its characteristic is that it can be stored for a long time.
Fresh milk is usually concentrated by vacuum or other methods to remove most of the moisture, concentrated to about 25%-40% of the original volume of dairy products, and then added 40% sucrose canned. The condensed milk is too sweet and must be diluted with 5-8 times more water. But when the sweetness meets the requirement, the concentration of protein and fat is often reduced by half as much as that of fresh milk. If water is added to condensed milk, the concentration of protein and fat is close to that of fresh milk, then the sugar content will be higher.
Because of the different raw materials and supplementary materials, the refined milk can be divided into sweetened refined milk, light refined milk, defatted refined milk, semi-defatted refined milk, color refined milk, fortified refined milk and processed milk. China used to produce sweetened whole milk and mild milk. In recent years, with the development of China's dairy industry, refined milk has withdrawn from the mass consumption market of dairy products. However, in order to meet the special requirements of different consumers on the concentration, flavor and nutrition of fresh milk, there will still be a certain market for concentrated milk produced by appropriate concentrating technology.
There are many classifications of refined milk, the main ones are as follows:
According to whether sugar is added or not, it can be divided into sugar-added milk (sweet milk) and sugar-free milk (light milk).
According to whether raw milk is degreased or not, it can be divided into: whole milk, degreased milk and semi-degreased milk.
According to the types of additives, it can be divided into: condensed milk, coffee condensed milk, vitamin fortified condensed milk and infant formula condensed milk which simulates human milk.
DescriptionSweetened Condensed Milk Production Line
Condensed milk is essentially evaporated milk with sugar added. The milk is then canned for consumer consumption and commercial use in baking, ice cream processing,
and candy manufacture. This product has a shelf life of two years.
*The milk is flash-heated to about 185°F (85°C) for several seconds. It is then piped to the evaporator where the water removed.
*The milk is then concentrated under vacuum pressure until it measures between 30-40% solid. It now has a syrupy consistency.
*The milk is cooled and then inoculated with approximately 40% powdered lactose crystals.
*The milk is then agitated to stimulate crystallization. It is this sugar that preserves the condensed milk.
*The milk is piped into sterilized cans that are then vacuum-sealed.

Working Capacity	From 5 tons/d up to 100 tons/d
Products	- Sweetened condensed milk
	- Evaporated milk without sugar
	- Condensed milk in varied package

The whole condensed milk production line consists of the following units:
1. Milk Reception or Powder Dissolving Mixing Section
2. Mixing and Sugar Melting Section
3. Pasteurizer and Homogenizer
4. Milk Storage or Yogurt Producing Unit
5. Vacuum Concentration Equipment
6. Crystal device
7. Filling or Packing Unit
8. CIP Cleaning System
9. After Treatment Equipment, like conveyor, package or pallet, etc.
10. There are other assistant equipment used such as steam boilers, air compressor, cold water unit, etc.
11. Installation materials for the material and non-material pipes as well as electrical system are provided.
Condensed Milk Production Process
Inspection on raw milk -- Milk clarification -- Cooling --Storage -- Standardization -- Pre-heating -- Homogenization -- Sterilization -- Evaporation -- Cooling and crystallizing --
Filling -- Secondary sterilization
