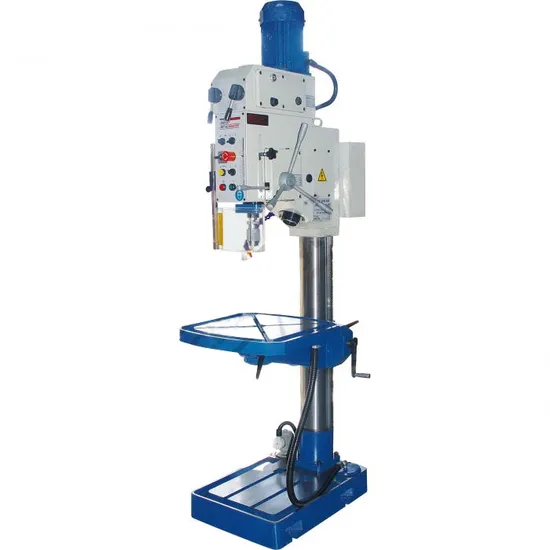

China Metal Vertical Drilling Machine Z5040e

US$1,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5040E
Type
Vertical Drilling Machine
Object
Hardware
Structure
Vertical
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Max. Drilling Capacity
40mm
Threading in Steel&Last Iron
M20&M24
Spindle Travel
180mm
Spindle Taper
Mt4
Spindle Power Feed
2steps/0.1-0.2mm/Rev
Spindle Speed
50-1450rpm
Table Size
560mm×560mm
Base Size
730mm×500mm
Motor Power
1.5kw
Packing Size(L*W*H)
2270mm×690mm×1100mm
Transport Package
W/Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84592900
Production Capacity
300 Sets/Month

Product Description

Product Description

Vertical drilling machine Z5040E
1.2 speed strong power motor
2. Automatic take out tools
3.2 steps power feed 0.1-0.2mm/rev
4. Drilling, tapping.

Product Parameters

Model Z5040E
Electronic power feed
Max.drilling capacity 40
Threading in steel & last iron M20&M24
Spindle travel 180mm
Spindle taper MT4
Spindle power feed 2steps/0.1-0.2mm/rev
Spindle speed 50-1450rpm
Width of T-slot 18mm
Max.distance from spindle axis to surface of column 350mm
Max.distance from spindle end to surface of table 770mm
Max.distance from spindle end to surface of base 1210
Table size 560×560
Base size 730×500
Motor power 0.85/1.5kw
NW/GW 465kg/615kg
Packing size 2270×690×1100mm
(L x W x H)

STANDARD ACCESSORIES,Free:
Drilling check
Aobor
Taper sleeve
Drift
Eyelet bolts
Wrench
Full wooden case for sea
English Operation Manual
OPTIONAL ACCS.:
Multi-spindles
Angle vice
CE :Spindle cover ,CE LOGO,CE Electric appliance Detailed Photos

Package :Full wooden case for sea
