High Quality Full Servo Baby Diaper Machine

US$1,500,000.00-3,500,000.00 1 set (MOQ)

Basic Info.

Model NO.
CSG-BD800T
Product Object
Infant
Designed Speed
>400pcs/min
Production Speed
>400pcs/min
Computer Control Panel
Computer Control Panel
Product Specification
Large
Automatic Grade
Full Automatic
Certification
CE, UL
Condition
New
Pass Percentage
97%-100%
Color
Customized According to Requirements
Product Structure1
Normal Baby Diaper
Product Structure2
Circle Waist Baby Diaper
Product Structure3
T Type Baby Diaper
Power
500kw Excluding Hot Melt Applicator and Compr
Transport Package
Wooden Crates/Cases
Specification
35 x 9 x 5
Trademark
YUHONG
Origin
China
HS Code
8441901090
Production Capacity
25 Sets/Year

Product Description

NEW YUHONG

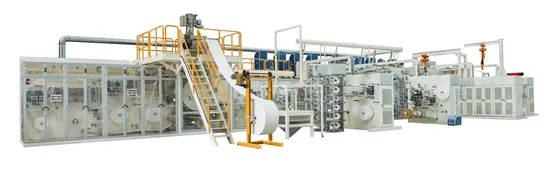

Full Servo Baby Diaper Machine Product Description
CSG-BD800T FULL SERVO BABY PULL UP PANTS MACHINE
Product Stucture
1 Normal baby diaper
2 Circle waist baby diaper
3 T type baby diaper
Main Technical Parameters
1 Supply,3 phase,380V,50Hz
2 Power:420KW(Excluding hot melt applicator and Compressor)
3 Production speed:500/600/700pcs/min
4 Qualification:≥97%
5 Outside dimension(m):35 x 9 x 5 (L×W×H)( for reference)
Main Function and Features
(I)Mechanical part
1 Pulp SAP mixing product and laminating core product are compatible
2 High-density ultra-thin fluff core forming drum system,good absorbability,and low reverse osmosis
3 S cut side tape online making, no waste application
4 3D material online making application (option)
5 Laminating core online making application(option)
6 Top sheet 3-pcs laminating ultrasonic process(option)
7 With web guiding system
8 Packing machine or stacker (option)
9 Dust collection filter system (option)
(II)Electric part
1 Full servo motor drive and PLC control
2 One button for size change, quick and less waste
3 High-precision tension control system,active un-winding and auto-splicing system
4 i-MAS Intelligent equipment mangement and analysis system
5 Material auto-splicing joint limit at 3m, and decrease material wastage
6 Material auto-splicing inspect,broken and lost alarm system
7 Material picture online positioning application
8 Vision inspection system (option)
9 Elastic BTSR tension control system, single tension adjust(option)
Detailed Photos
Sales Service
Company Profile
ZHEJIANG NEW YUHONG INTELLIGENT EQUIPMENT CO.,LTD
With nearly 30 years design and manufacturing of disposable hygiene machine( Sanitary napkin machine , Under pad machine , Adult & Baby diaper machine) , more than 30 sets production line per year, and provided thousands of machines to our customers around the world. Especial enjoyed the good reputation in China, South-east Asia, middle-east, and Europe.
