Basic Info.
Number of Stator
Three-Phase
Species
Y, Y2 Series Three-Phase
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Number of Poles
2,4,6,8,10, 12
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, IEC
Output Power
100-50000 Kw
Structure
High Voltage Squirrel Cage Motor
Protection
IP44, IP54, IP55, IP56
Driving
Compressor, Pump, Fan, Blower, Crusher
Housing
Welded Steel Plate / Cast Iron
Voltage
380V 660V, 3kv 2.4kv 6kv 4160V 10kv 11kv 13.8kv
Cooling Method
IC01, IC411, IC611, IC616, IC81W
Transport Package
Plywood Case
Specification
100~50000 kW
Production Capacity
500 Pieces Per Month
Product Description
Y2, YKK, YKS High Voltage AC Squirrel Cage Asynchronous Induction Motor
1. General introduction
YKK-series (2Kv~11Kv) squirrel-cage three phase asynchronous motor, is building on the advanced technology in the nation. The protection degree of the motor is of IP23(according toGb4942.1), and the cooling method is IC01(according to GB/T1993).
The motors has a lot of advantages such as height efficiency, enerty-saving, low noise and vibration ,light weight and reilable performance. THey are easy for installation andmaintenance. The motor has high insulation class and moistureproof capacity.
The motor is used to drive various mechanical equipments such as blowers, pumps, crushers, storkremoing machines and other equipments. It can serve as the prime movers in coalmines, mechanical industries, powerplants and various industrial enterprises.
2. Brief Construction
The motor adopts compacted box structure, welding-jointed steel plate forits frame, light weight, rigid in construction, there is closed air to air coolers on the stator frame convenient for installation and maintenance.
Stator winding adopts F class insulation and its end adopts firm binding. The whole stator adopts solvent-free varnish Vacuum pressure impregnation(VPI) to ensure the stator has excellent electric property and humidity resistance.
Rotor is made of cast aluminium or copper bar. Aluminium rotor is made of pure aluminium, copper barwedging copper rotor enhances the entorety of rotor.
The motor adopts rolling bering or sliding bering, according to the output power and rotary speed. Bearing protection grade normally is IP44. If the motor's protect grade increases, so does the berings'. Rolling bearing adopts iubricating gresse and its grease charger and discharger can be charged or discharged without stopping the motor.
The junction box is of IP54 protection grade and it is usually mounted on the motor's right side(viewed from shaft extension end.) It is also can be mounted on the left side and its outlets have four optional orientations(up, down, left or right.) Separated grounding unit is available in main junction box, too.
3. Working conditions and performance
a) THe rated power supply is 6KV/50HZ, 10KV/50HZ.
b) The insulation class is F, the protection degreeis IP44 or IP54.
c) Height above sea level does not exceeding 1000 meters.
d) Height environmental temperature<40ºC, lowest environmental temperature:rolling bering>-15ºC.silding bering>5ºC.
e) The ambient air relative humidity does not exceed 95% and the mean monthly minimum temperature of current month does not exceed 25ºC
f) The deviation between power voltage and rated voltage is less than5%.
g) Rated frequency:50Hz+1%.
h) Duty type:continuous duty type S1.
i) Cooling method is IC611.
Order requirement:
Please indicate the motor type, rated output, rated voltage, rated frequency, synchronous speed, Explosion proof Mark, mounting type, protection grade, cooling method, rotation direction(view from the shaft extension side), using environment (indoor /outside).
Comparison of different series High Voltage motors
No. | Squirrel-cage motor | Y | YKK | YKS | Y2 |
Slip ring motor | YR | YRKK | YRKS | / |
1 | Structure | Box-type construction, made up of steel plates welded with each other | Compact struction |
2 | Cooling method | IC01 or (IC11, IC21, IC31) | IC611 or IC616 | IC81W | IC411 |
3 | Natural ventilation, with top mounted protection cover | With top mounted air-air cooler | With top mounted air-water cooler | |
4 | Protection type | IP23 | IP44 or IP54 | IP44 or IP54 | IP54 |
5 | Insulation | F |
6 | Mounting arrangement | IMB3 |
7 | Voltage available | 3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv |
8 | Frequency available | 50Hz , 60Hz |
Pictures of YKK,YKS High Voltage AC Squirrel Cage Asynchronous Induction Motors

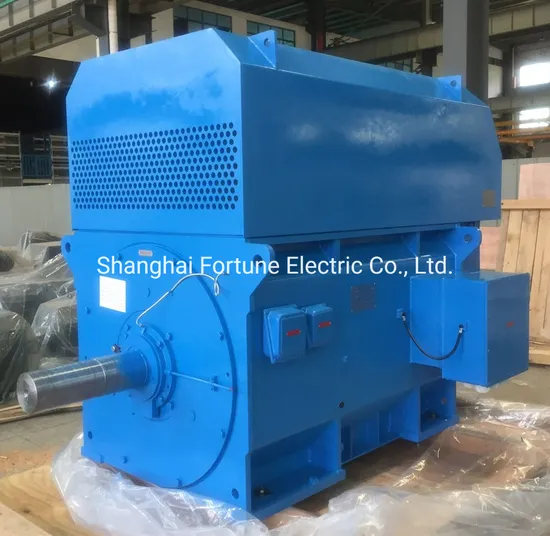

Vertical flange mounted IC81W air-water cooled high voltage squirrel cage motor
Vertical flange mounted cast iron frame IC411 TEFC high voltage squirrel cage motor
