Digital Handheld Portable Energy Power Meter Quality Analyzer

Product Description

Product Description

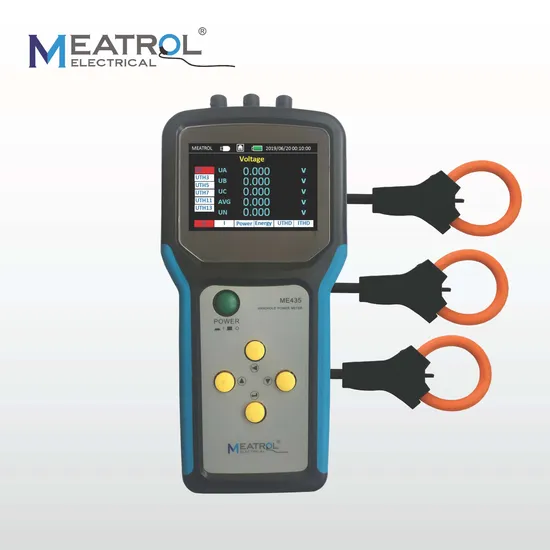

ME435 Poly-phase Handheld Power Meter
The power meter measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. In addition, the power meter calculates power factor, realpower, reactive power, and more.

Connectivity advantages
Model	ME435
Support Extra sensor	3pcs BNC terminal 333mV CT 3pcs BNC terminal 320mV current clamp 3pcs BNC terminal Rogowski coil
Storage	1GB SD card(Max 4GB) (save intervals 1mins default)
Power	4*AA battery(wroking time: approx 7 hours) Or USB Type-C

Feature

Specification
Model	ME435
Product component type	Handhold poly-phase power meter
Poles description	3PH4W 3PH3W 1PH2W (L-N); 1PH2W(L-L);1PH3W(L-L-N)
Device application	Power analysis Energy meter
Input type	External Rogowski coil External CT(333mV only)
Display	3.5 inch TFT screen display
Sampling rate	8k samples per second
Harmonic	52th Max
Mechanical characteristics
Weight		350g
Dimension		L*W*D:21.5*10*3.5CM

Power Meter Characteristics
The power meter measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. In addition, the power meter calculates power factor, realpower, reactive power, and more.
The following sections list the metering characteristics of the power meter.
Real-Time Measuring
The following table lists the metering characteristics of the power meter for the real-time
measurement:

Characteristics	Description
Current	Per phase, neutral, and average of 3 phases
Voltage	L-L, L-N, and average of 3 phases
Frequency	45...65 Hz
Active power	Total and per phase (signed)
Reactive power	Total and per phase (signed)
Apparent power	Total and per phase(signed)
Power factor (True)	Total and per phase 0.000 to 1 (signed)
Angle	Voltage angle,Current angle
Current unbalance	Per phase, most unbalanced of 3 phases
Voltage unbalance	most unbalanced of 3 phases

Packing& Shipping

Packaging: current transformer,1 pc of /pp bag, 100 pcs/cartoon. Shipping: Express, Sea, Land, Air , as customers' needs

After Sale Service

!Safety and warning notes!
In order to guarantee safe operation of rogowski coil/ current transducer/Rogowski coil/ current transformer and to be able to make proper use of all features and functions,please read these instructions thoroughly!Safe operation can only be guaranteed ifthe transducer is used for the purpose it has been designed for and within the limits of the technical specifications.Ensure youget up-to-date technical information that can be found in the latest associated datasheet under www.rogowski.cn.

FAQ

Q:What's MEATROL? A:We are the No.1 manufacturer of rogowski coil with meters in China over 12years.
Q:How about your company product quality? A:High quality, resonable cost. Q:What's your productivity? A:Rogowski coil, Produced 200k pcs Rogowski coil per year. Q:Do you support customization? A:Any R&D requirement relate to Rogowski could be realized.

---
