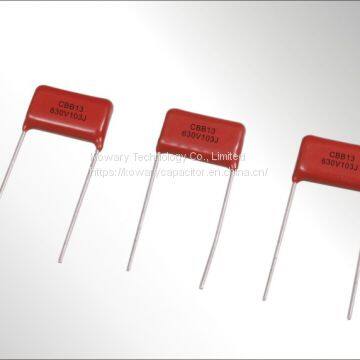

| Features | Film and aluminum foil, non-inductive wound construction. |
| Excellent frequency and temperature characteristics. | |
| Very small loss even at high frequency. | |
| Applications | Widely used in high frequency, DC and pulse circuit. |
| Specifications | REFERENCE STANDARD: IEC 60384-13 |
| OPERATING TEMPERATURE: -40°C - +85°C | |
| CAPACITANCE RANGE: 0.001uF - 0.47uF | |
| CAPACITANCE TOLERANCE: ±5%(J), ±10%(K), ±20%(M) | |
| RATED VOLTAGE: 100VDC, 250VDC, 400VDC, 630VDC, 1000VDC | |
| DISSIPATION FACTOR: 0.1% max. at 1KHz, 20°C | |
| DIELECTRIC STRENGTH: 200% of rated voltage for 5 sec. | |
| INSULATION RESISTANCE: 50,000 MOhm min. for C≤0.1uF 5,000 MOhm*uF/C min. for C>0.1uF (20°C, 1min) | |
| Notes | Customization for special specification and requirement is available. Kindly contact withinfo at for product datasheet. Thanks! |
