Basic Info.
Type
Worktable Milling Machine
Certification
GS, CE, RoHS, ISO 9001
Product Name
Drilling Milling Machine
Max. Drilling Capacity
45mm
Max. Face Milling Capacity
80mm
Packing Size
1020/820/1160mm
Transport Package
Plywood Case
Specification
620*750*1000mm
Production Capacity
1000units/Month
Packaging & Delivery
Package Size
102.00cm * 82.00cm * 116.00cm
Package Gross Weight
320.000kg
Product Description
Product Description
1.Quiet B section belt drive system
2.Milling head rotates 360 on column
3.Extra large 820 x 240mm ground work table with T-slots
4.Adjustable leadscrew nuts eliminating backlash on both axis
5.Fine feed hand wheel operating quill feed
6.Forward and reverse on/off switch
7.3MT spindle with 75mm diameter quill
8.Adjustable table and drill length stops
9.Rack and pinion wind-up head
10.Rear slide-way cover and slide clamps on all axis
11.Spindle lock for quill
12.Table lock on both axis
13.Metric dial graduations @ 0.05mm for X & Y axis
14.Optional power feed fits straight on the table
Model | ZAY7045 |
Drilling capacity | 45mm |
Face milling capacity | 80mm |
End milling capacity | 32mm |
Distance from spindle nose to table | 450mm |
Min.distance from spindle axis to column | 203.5mm |
Spindle travel | 130mm |
Spindle taper | M.T.4 or R8 |
Step of spindle speed | 12 |
Range of spindle speed 50Hz | 80-2080 r.p.m |
60Hz | 100-2500 r.p.m |
Swivel angleof headstock (horizontally) | 360 |
Table size | 800/240mm |
Forward and backward travel of table | 175mm |
Left and right travel of table | 500mm |
Motor Power | 1.5KW |
Net weight/gross weight | 285kg/335kg |
Packing size | 1020/820/1160mm |
Loading amount | 28pcs/20'container |
Standard accessories:
Allen wrench
Wedge
Tie rod
Some tools
Optional accessories:
Stand base
Auto power feed
90mm Machine Vice
125mm Machine Vice
Drill chuck
Reduction sleeve
Mill chuck
Tapping system
Work lamp
Coolant system
2 axis DRO
3 axis DRO Company information:

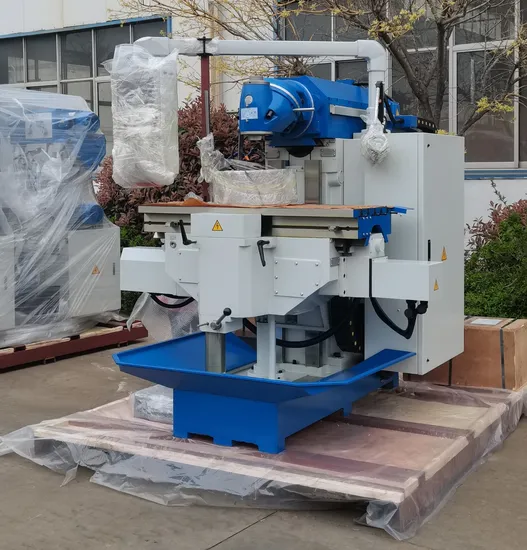

Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.
Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
>>
