China Furniture Panel Processing Machinery Manufacturer Ryzor Egdebander with PUR

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
PE-853GPW-PUR
Type
Straight Line
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
15m/min
Certification
CE
Panel Thinkness
10-60mm
Min.length panel
150mm
Min.width panel
80mm
Manufacturing Principles
Glue Tank Overhead
Customized
Customized
After-sales Service
1 Year
Does It Comply with Local Environmental
Accord with
Applicable Sheet Metal
Wooden Board, Artificial Board
Control System
Intelligent Operating System
Transport Package
Foam Wrapping
Specification
9785*970*1780mm
Trademark
RYZOR
Origin
China
HS Code
84651000
Production Capacity
400

Product Description

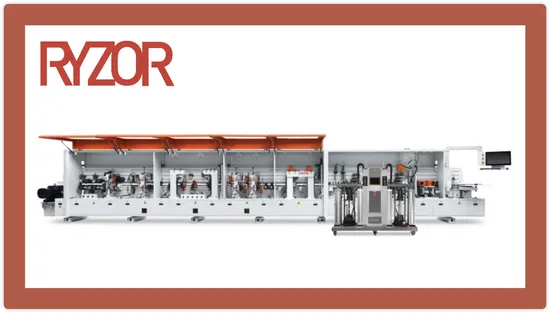

PE-853GPW-PUR Fully Automatic High-Speed Heavy-Duty Single-End Edge Ban
This comprehensive set of features makes the PE-853GPW-PUR a versatile and efficient solution for edge banding in furniture manufacturing, capable of handling various materials and requirements with precision and speed.
Technical parameters/model PE-853GPW-PUR
Dimensions (mm) 9785*970*1780 plate thickness 10-60mm
power 29.5KW Sheet length 150mm
Processing speed 20-26m/min Sheet width 60mm
Edge banding thickness 0.4-3mm Minimum board size (mm) 300(L)*60(W),150(L)*150(w)
Edge banding width 12-65mm

Additionally, there are more optional enhancements,Refer to the functional group processing workflow for details.

High-Rigidity Structure Design:
- The machine bed and guide rails are welded together for increased stability.
- The upper pressing mechanism uses a high aluminum beam with a large fixed colum
Quick Triple Motor End Trimming:
- Equipped with three motors, it can control the board spacing to 600mm.
High-Speed Motors for Rough and Fine Trimming:
- The machine is equipped with two 1.1KW high-speed motors for rough and fine trimming, with digital pneumatic adjustment for convenience, efficiency, and easy adjustment.
package

Guangdong Rongyao Future Technology Co., Ltd, as the parent company of the independent brand RYZOR, focuses on the automation and CNC of panel furniture machinery and equipment, developing innovative solutions. The company continuously absorbs advanced foreign technologies and reforms and innovates. With years of professional knowledge and an R&D design and manufacturing team, Rongyao ensures the control of product details, guaranteeing the production of advanced, stable, and high-quality machinery to meet the ever-changing market demands. The company′s main products include a full series of edge banding machines such as pressure wheel edge banding machines, track high-speed edge banding machines, intelligent flexible edge banding machines, PUR, HOT AIR, LASER; Computer panel saws, CNC drills, CNC cutting machines, and automated production line equipment. Our products serve over 30 provinces and cities nationwide and are exported to more than 20 countries abroad, earning widespread customer support and trust.
Q1: Are you a manufacturer?
A1: Yes. We have 16 years of production and export experience.
Q2: Regarding MOQ
A2:1 set, we are OEM, and I will give you a more competitive price than the market.
Q3: Can you customize this machine?
A3: Of course, our machines can be customized according to the buyer's requirements.
Q4: How do I place an order?
A4: Please tell me your question and I will do my best to help you.
Q5: If I want cheaper quality, can you produce it?
A5: Yes, just send us your detailed quality information, such as materials, which parts are cheaper, etc. We will calculate and determine the price based on your requirements.
Q6: If the quantity is large, what is the good price?
A6: Please send us detailed inquiry information, such as product number, quantity of each product, quality requirements, logo, payment terms, transportation method, unloading location, etc. We will provide you with an accurate quotation as soon as possible.
