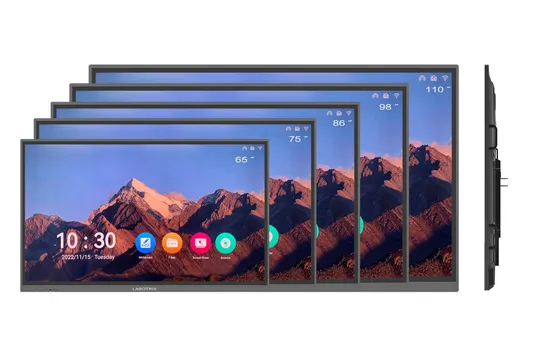

86 Inch Touch Board with 4K Resolution Android 13.0 System Interactive Flat Panel for Office and School Use

Product Description

Product Description

	Size	86"
Display	Display Area HV (mm)	1895mm×1066mm
	Resolution	3840×2160 pixels
	Refresh Frequency	60Hz
	Luminance	300-350cd/m2
	Contrast Ratio	1200:1 / 5000:1 (OC)
	Visual Angle	1780(H/V)
	Display Color	8bit 16.7M/1.07B (10bit)
	Backlight	DLED
	Colour Gamut NTSC	72%
	Lifetime	For 50,000 hours
Surface	Shell Material	Aluminum alloy face frame, oxidized sandblasted silver black
	Front Frame Color	Black, can be customized silver black or other colors
	Front Frame Glass	Physical tempered grade 7 explosion-proof glass / anti-glare explosion-proof grade 7 tempered glass
	Front Box Pen Slot	The two magnetic grooves on the front
Touch	Identification Principle	Infrared recognition
	Touch Embedding Mode	Built-in one-piece
	Writing Way	Finger, touch pen or other 2mm non-transparent object (full screen writing)
	Touch Points	20 Points
	Touch Resolution	32767*32767
	Touch Precision	±1mm
	Response Speed	<8ms
	Touch Number	theoretical infinite
	Drivers	System automatic identification, no need of driver
	System	windowsXP/7/8/10/11, Android, MacOS, Linux
	Working Temperature	-10~+50 ºC
	Communication Mode	USB 2.0/USB 3.0
System	Scheme	Amlogic T982
	CPU	Quad-core ARM Cortex-A55
	GPU	Mali-G52 MP2(2EE)
	Basic Frequency	1.9GHz
	Internal Storage	4G DDR
	Memory	32GB (EMMC)
	Wi-Fi	2.4GHz/5GHz
	System Version	Android 13.0
Front Interface	Input Port	USB 2.0×2
		HDMI×1
		TOUCH USB×1
		Type-C×1
	Prehole Position	Automatic photosensitive hole 1
		Remote control receives the indicator light 1
Buttons	Eight Buttons	Switch, volume +, volume-, eye protection, recording screen, home page, setting, touch switch (single button optional)
Interface	Rear port	RJ45×1
		TOUCH USB×1
		USB3.0×1
		USB2.0×1
		RS232×1
		HDMI IN×1
		AV IN×1
		Earphone×1
		AV OUT×2
		COAX×1
Power Consumption	Power	≤390W
	OPS Power	≤105W
	Working Voltage	100~240V AC, 50/60Hz
	Standby Power Consumption	≤0.5W
	Sound Channel Stereo	2
	Dual-channel Power	20W/ 8 Euro 2 speakers
Environment	Working Temperature	0~40ºC
	Working Humidity	10%~90% RH
	Storage Temperature	-20~60ºC
	Storage Humidity	10%~90% RH
Size & Weight	Dimension	1953×108×1151mm
	Camera Model Dimension	1953×108×1164mm
	Package Dimensions	2100×215×1300mm
	VESA Stent Hole Position	400(V)×800(H)mm
	Wall Hanging Thickness	36mm
	Net Weight	60KG
	Gross Weight	76KG
Standard List	Nameplate	1 (affixed on the back of the whole machine)
	QR Code	1 (at bottom left of front box)
	Accessory Box	×1
	Power Supply Line	1.8m×1
	Certificate of Qualification	×1
	Warranty Card	×1
	Remote Control (battery-free)	×1
	Touch Pen (magnetic suction)	×2
	Wall-hanger	×1

Detailed Photos


Company Profile Labotrix Group Limited - Touch Screen for Education and Conference Labotrix Group Limited, established in 2005, is a leading provider of educational technology solutions. Based in Shenzhen, China, we have been dedicated to research and development in the field of education, empowering educators with the latest technology.
With over 16 years of experience, we have been consistently providing OEM & ODM services for educational projects in both domestic and international markets. Our products, including the popular 14.1" laptop PC, 10.1" tablet PC, and desktop PC, are flexible and compatible with various project requirements.
We pride ourselves on our high standards of product quality and services, which serve as the cornerstone of our brand development. In addition to OEM brands, we also offer our own brands, "LABWE" and "LABOTRIX," which have gained popularity in Central Asia, Southeast Asia, the Middle East, and Europe.
With our streamlined management system, we ensure great manufacturing capacity and speedy lead time without compromising product quality. We are committed to contributing to the business development and expansion of our partners worldwide.
Product Description: Introducing our Touch Screen for Education and Conference, designed to revolutionize the way you teach and collaborate. With a stunning 3840 x 2160 resolution, this interactive touch display offers a truly immersive learning and meeting experience.
Key Features:
Touch Screen Whiteboard
High Resolution Touch Panel
Smart Interactive Board
LCD Touch Monitor
Android Touch Screen
Conference Interactive Whiteboard
Large Touch Screen Display
Interactive Classroom Board
Touch Screen Monitor
Digital Learning Whiteboard
Ultra HD Touch Display
Smart Touch Panel
Portable Touch Screen
Interactive Presentation Board
Touch Board for Schools
Professional Conference Display
Interactive Touch Screen Panel
Smart Classroom Whiteboard
Educational Touch Panel
Wireless Interactive Board
Touch Screen for Meetings
Digital Whiteboard for Education
Large Format Touch Display
Experience the future of education and collaboration with our Touch Screen for Education and Conference. Enhance engagement, foster creativity, and unlock new possibilities in your classroom or meeting room. Trust Labotrix Group Limited for cutting-edge educational technology solutions.

---
