Mvf-1A ASTM Pin/Ball on Disc Friction and Wear Test Equipment Testing Machine

Product Description

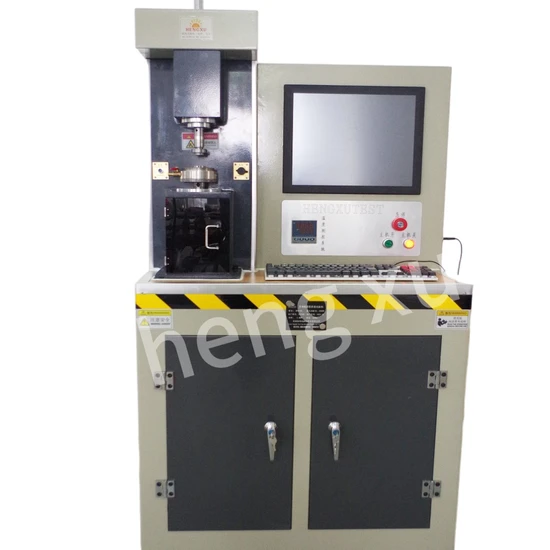

Detailed PhotosMVF-1A Multi-function vertical friction and wear testing machine
The MVF-1A friction and wear testing machine is a friction form with rolling, sliding, or sliding rolling composite motion under a certain contact pressure. It has a stepless speed control system and can be used to evaluate the friction and wear performance of lubricants, metals, plastics, coatings, rubber, ceramics, and other materials under extremely low or high speed conditions. This testing machine has broad application prospects in various professional and technical fields of tribology, petrochemicals, machinery, energy, metallurgy, aerospace, various colleges and universities, research institutes, and other departments.Standards
ASTM D-3702-94: Coefficient of friction and wear rate testing with thrust washer methodsASTM G-99: Pin-on-disk method for wear and friction analysisASTM D-2266-01: Lubricating oil wear testing using the four-ball methodApplications
Ideal for testing lubricating oils, greases, metals, plastics, coatings, rubber, and ceramics, this testing system is widely used in industries requiring reliable wear and friction data to ensure product durability.
Features
Equipped with a servo motor that provides high controllability and a low failure rate.
Combines dual floating bearing, gap-free guidance, and cross-balance buffering technology for accurate, stable measurements while reducing system errors.
Built with a robust frame, including thickened support plates and a high-performance servo motor, reducing the impact of vibration on measurement accuracy.
Features an independent embedded industrial controller and metal touch screen with a specialized analysis module, ensuring reliable operation even during high-speed testing or when vibrations occur.
Proprietary software allows for the creation of test plans tailored to specific standards, enhancing flexibility and precision in testing.
Main technical parameters

NO	Name	Indicator
1	Test force	1.1 Axial test force range:10N~1000N(Stepless adjustable)
		1.2 Relative Accuracy of test force display:below 100N:±2N,above 100N:±0.5%
		1.3 Test force automatic loading rate:300N/min(automatic adjustable)
		1.4 Loading mode:AC servo loading ,can set the precise guidance and the section loading
		1.5 Relative Accuracy of test force when it automatically maintain:±1%
2	Friction torque	2.1 Friction torque measuring range:2.5N.m
		2.2 Relative Accuracy of friction torque display:±2%
		2.3 Friction load sensors:300N
		2.4 Friction arm distance:50mm
3	Spindle stepless speed change range	3.1 Spindle conversion speed range:1-2000rpm(Optional acceleration and deceleration device)
		3.2 Accuracy of Spindle speed:±1%
4	The heating system	4.1 Heater working temperature range:Room temperatur~260ºC
		4.2 Accuracy of temperature:±2ºC
5	Test medium	oil, water, mud, abrasive, etc.
6	Holding mode of friction pair	No gap circumferential maintenance
7	Taper of the spindle of a test machine	1:7
8	Maximum distance between the spindle of the test machine and the lower auxiliary disk	>75mm
9	Test machine control system	9.1 Using industrial motherboard, touch screen control, HTMS professional friction and wear software, using the principle of high stability modular integration, the test parameters can be set at one key, full automatic loading,the curve real-time tracks in the whole process, and can enlarge,edit and save curve at any time, curve auto optimization, can carry on single point collection;Real time recording data, autoly saving data when without power, can output shared data.
		9.2 With upper limit protection and lower limit protection function, it has soft emergency stop protection. It can carry out time control, speed control and friction torque control.
		9.3 Time display and control range of test machine:10s~9999min
		9.4 Speed (cycle) display and control range of test machine:(1~99)×105
		9.5 The maximum output torque of the main motor of a test machine:5N.m
10	Main body	Adopt casting integrated mainframe, high strength welding frame.
11	Test machine size(L×B×H)	860×740×1560mm
12	Weight	About 450kg

Our AdvantagesCompany Profile Jinan HengXu Testing Machine Technology Co., Ltd., established in 2007, is a prominent hightech enterprise specializing in the research, development, and production of testing machines. With a focus on friction wear testing and mechanical testing for advanced materials, the company has become a leading player in China's testing industry. HengXu stands out due to its advanced testing technologies and strong customer trust, achieving over 100 million RMB in sales in last year.
Exhibition
Certifications
After Sales Service
FAQQ: Are you a manufacturer?
A: Yes, we are a professional manufacturer with many years of manufacturing experience. Our factory is equipped with advanced production equipment and a skilled team, committed to providing customers with high-quality products and services. At the same time, we also welcome you to visit our factory at any time to better understand our production process and capabilities.
Q: How long does it take to produce and deliver?
A: The production and delivery cycle of the equipment is generally 10-20 days, depending on the equipment model and customization requirements you choose. If your order requires customized functions, the delivery time may need to be extended to about 4 weeks. We can provide a detailed delivery plan after confirming your complete requirements. If you have urgent order requirements, please let us know at any time, we will try our best to arrange a priority production plan for you!
Q: How is the equipment transported and protected?
A: To ensure the safety of equipment transportation, we use shock-proof and moisture-proof export-grade wooden boxes for packaging, and all precision parts will be properly handled with foam and protective film.
In terms of transportation methods, we can arrange sea or air transportation, and provide various documents (such as invoices, packing lists, certificates of origin, CE certificates). Before the equipment is packaged, we will complete all debugging procedures to ensure that it can be used after installation.
Q: How long is the equipment warranty period? How about after-sales support?
A: We provide a 1-year warranty service for all friction and wear testers, and provide free technical support and maintenance services (non-artificial damage) during the warranty period. In addition:
Remote technical guidance (such as installation and operation) can be provided;
Support on-site installation and commissioning and operation training when necessary (negotiable fees);
Provide lifetime paid equipment maintenance and supply wearing parts and accessories.
If you need to extend the warranty period or other after-sales service arrangements, please feel free to contact us!
Q: Can the test effect be verified before the equipment is delivered?
A: Of course! After the equipment is produced, you can choose the following methods:
Remote video acceptance: We will show you the equipment test operation and performance;
On-site acceptance: You are welcome to visit our factory for equipment function acceptance;
Provide sample testing: You can send samples to our company, we will shoot test videos for you, and provide detailed reports.
I hope the acceptance method can meet your expectations, and welcome further communication!
Q: We are using this equipment for the first time, can you provide training?
A: We provide detailed technical guidance and training support for all customers who purchase equipment, including:
The operating manual and operation guidance video that comes with the equipment;
Remote installation guidance: Demonstrate the operation steps through online videos;
On-site training (negotiable): If necessary, we can arrange for technicians to come to your factory for installation guidance and training (extra charge).
After the training, we guarantee that your team can operate the equipment proficiently and complete related testing work. Any follow-up questions also support lifelong technical consultation!

---
