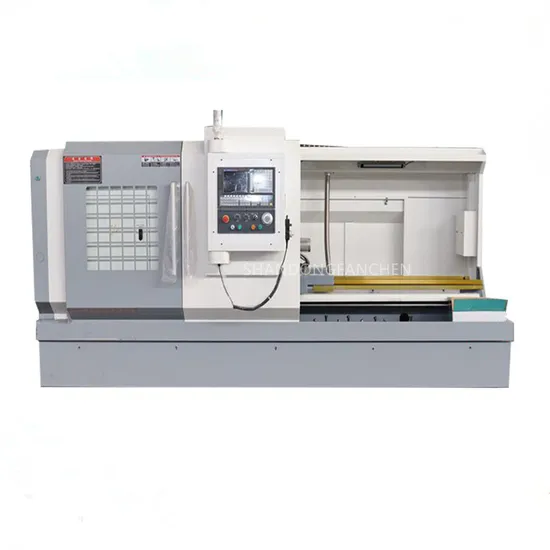

Fanchen Horizontal Lathe Ck6180 CNC Lathe Metal Stainless Steel Parts Cutting Machine Tool

US$11,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK6180
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
800
Maximum Working Length
750/1000/1500/2000/3000
Tool Rest Form
Electric Four-Station
Machining Accuracy
High
Inner Diameter of Spindle Through Hole
Φ105
Width of Guide
600
Spindle Drive Form
Three Speed Endless Shift
Spindle Speed
30-835r/Min
Servo Motor
10/15
Maximum Turning Diameter on The Tool Hol
480mm
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10

Packaging & Delivery

Package Size
3600.00cm * 3800.00cm * 3100.00cm
Package Gross Weight
2200.000kg

Product Description


Maximum turning diameter on the bed 800mm
servo motor 15nm,10nm
Maximum turning diameter on the tool holder 480mm
Maximum working length 750/1000/1500/2000/3000/4000
x middle drag board width 330mm
Width of guide rail on top of bed 600mm()Bed foot integral casting
Spindle end D11
Spindle through hole diameter 105mm
Spindle speed 30-835r/min
Numerical control system 840 Siemens840
z Drag board z to the minimum moving unit 0.001mm/min
X Drag plate X to the minimum moving unit 0.001mm/min
X Drag plate X direction travel 450mm
z Drag board z stroke 1500mm
Maximum working length 1350mm
x/z Drag board x/z to fast moving speed 6000/7000mm/min
Tail seat sleeve diameter 100mm
Tailstock sleeve taper hole 6Six Mohs
Maximum travel of tailstock sleeve 250mm
Main motor power 11kw
Z-axis repeated positioning accuracy 0.01mm
X axis repeated positioning accuracy 0.01mm
Electric tool holder repeated positioning accuracy 0.002mm

1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
