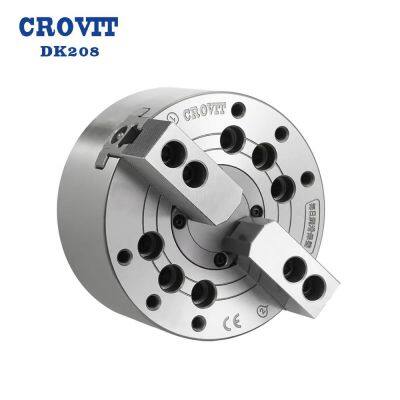

High Precision Power Chuck DK208

Product Details

Product Description

Product Description
1. Specifications

Model	DK208
Thru Hole Dia. [mm]	52
Plunger Stroke [mm]	16
Jaw Stroke Dia. [mm]	7.4
Max RPM [r.p.m.]	5000
Max Draw Bar Pull Force [kgf(kN)]	2240（22）
Max Gripping Force [kgf(kN)]	5710（56）
Max. Hydraulic Pressure [kgf/cm2(MPa )]	17（1.7）
Weight [kg]	23.0
Matching Cylinder	DC-1552
Gripping Range [mm]	Φ13～Φ210

2.Dimension[mm]

Model	DK208
Spindle Nose No.	A2-6(A2-5)
A	210
B	91
C(h6)	170
D	106.375
E	17
F	5
G	6-M10x1.5P
G1	3-M6
G2	6-M12x1.75P
G3	4-M5
H	180
H1	150
H2	133.4
H3	67
I	52
J	18
K	25
L	39
M	95
N	20.5
O	M60x2P
P	35
Q	14

---
