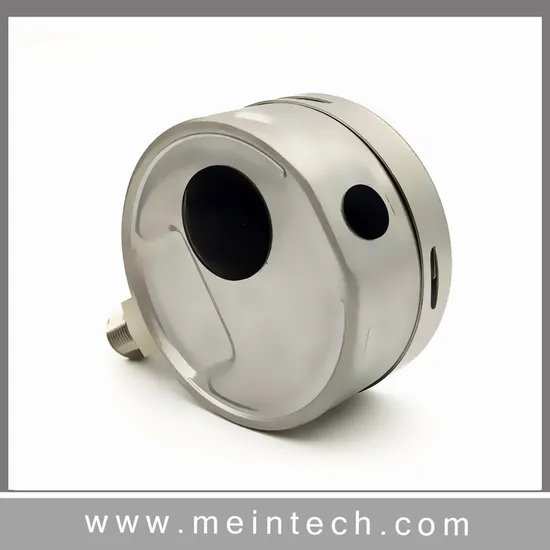

Stainless Steel Pressure Gauge

US$13.88-14.86 1 Piece (MOQ)

Basic Info.

Model NO.

66GM

Accuracy

1.6

Display

Pointer

Application

Industrial

Structure

Spring Pressure Gauge

Connection Type

by Thread 1/2npt or M20*1.5

Function

Local Indication Type, Electric Signal-controlled

Installation Structure

Direct Mounting

Features of Measurement Medium

General Pressure Gauge

Indicating Pressure Reference

Gauge Pressure, Absolute Pressure

Transport Package

Carton

Specification

ISO

Trademark

Meinte

Origin

Beijing, China

HS Code

9026900000

Production Capacity

500PCS/Month

Product Description

Stainless steel pressure gauge
Nominal size in mm : 50mm,60mm, 100mm ,150mm
Precision: 1.6%
Scale ranges: -1~1000bar
Ambient temperature : -40~+60ºC
Maximum operate temperature : +200ºC
Process connection : SS 304
Process connection : G1/2" ,PT 1/2",NPT 1/2"
Bourdon tube : SS 316L
Movement : SS 304
Housing :SS304
Pointer : Aluminum, black

Nominal Diameter:	2.5"(63mm), 3"(75mm), 4"(100mm),6"(150mm)
Case:	304 stainless steel
Bezel:	304 stainless steel --crimp ring or bayonet ring
Screen:	PC Lens, glass lens or safety glass
Stem Materials:	304 stainless steel or Brass
Stem Diameter and Length	as order request
Pointer:	Aluminum
Movement:	Bi-metallic coil
Stem:	AISI 304 stainless steel standard
Connection:	NPT,PT or other
Accuracy:	1%,1.5%,2.5%
Other:	With recalibrator-reset screw or without
Material	SS304
Transport package:	By carton
Order Code:	HMT
